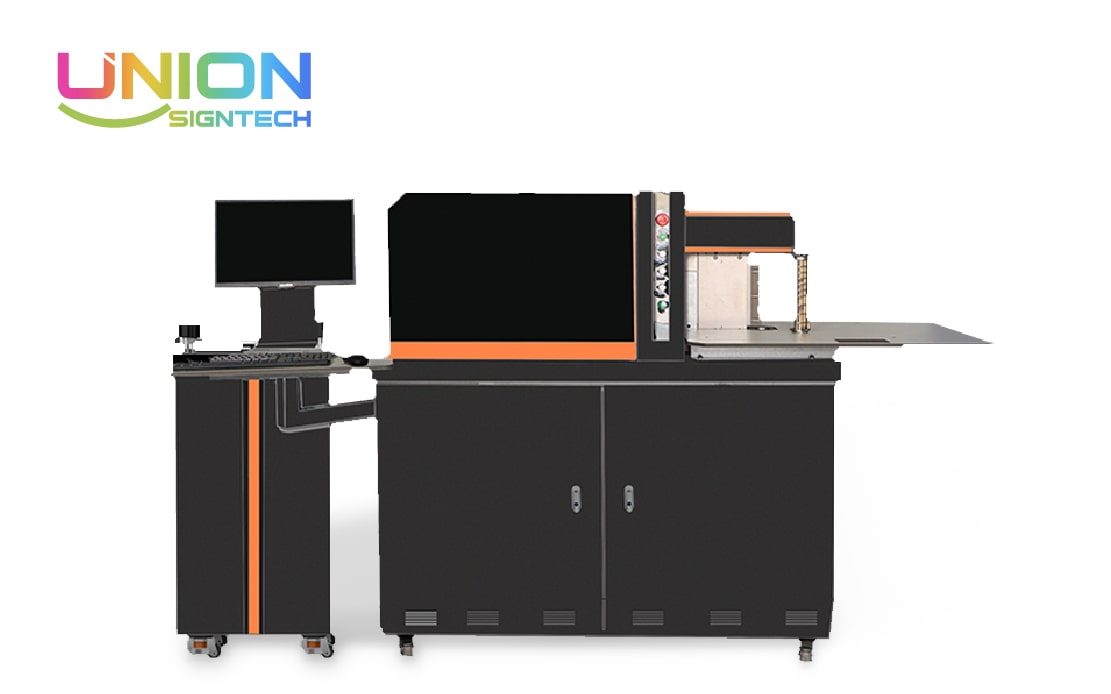

ULB-160M CNC Channel Letter Bender with Double Bend & Notch

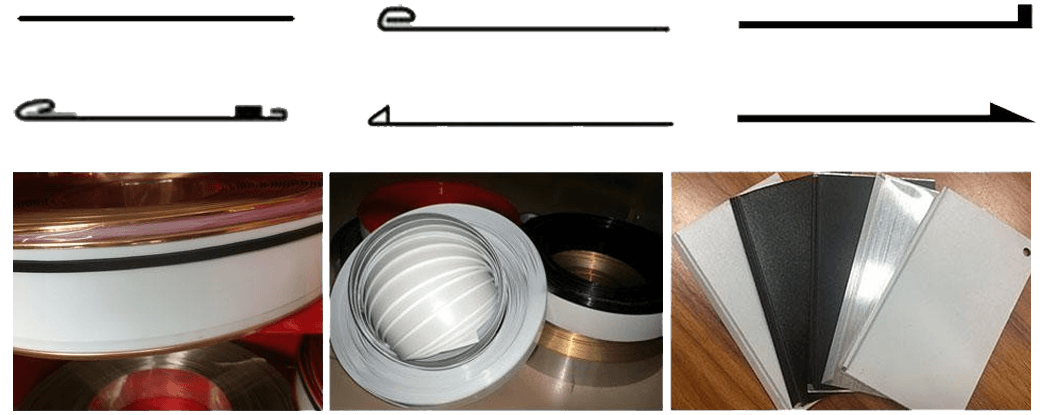

Application Industrial and Material

The application range of the Channel Letter Bending Machine is generally in the advertising industry. When the advertising.  The company needs to do the luminous characters for the shops; it needs to use the channel letter bending machine to make the production. The channel letter bending machine can process many materials (stainless steel, iron sheet, aluminum profiles, aluminum strip ) and does not damage the material. The processing precision is high and the speed is. The material thickness and tool adjustments are all adjusted by software, making it more convenient and faster

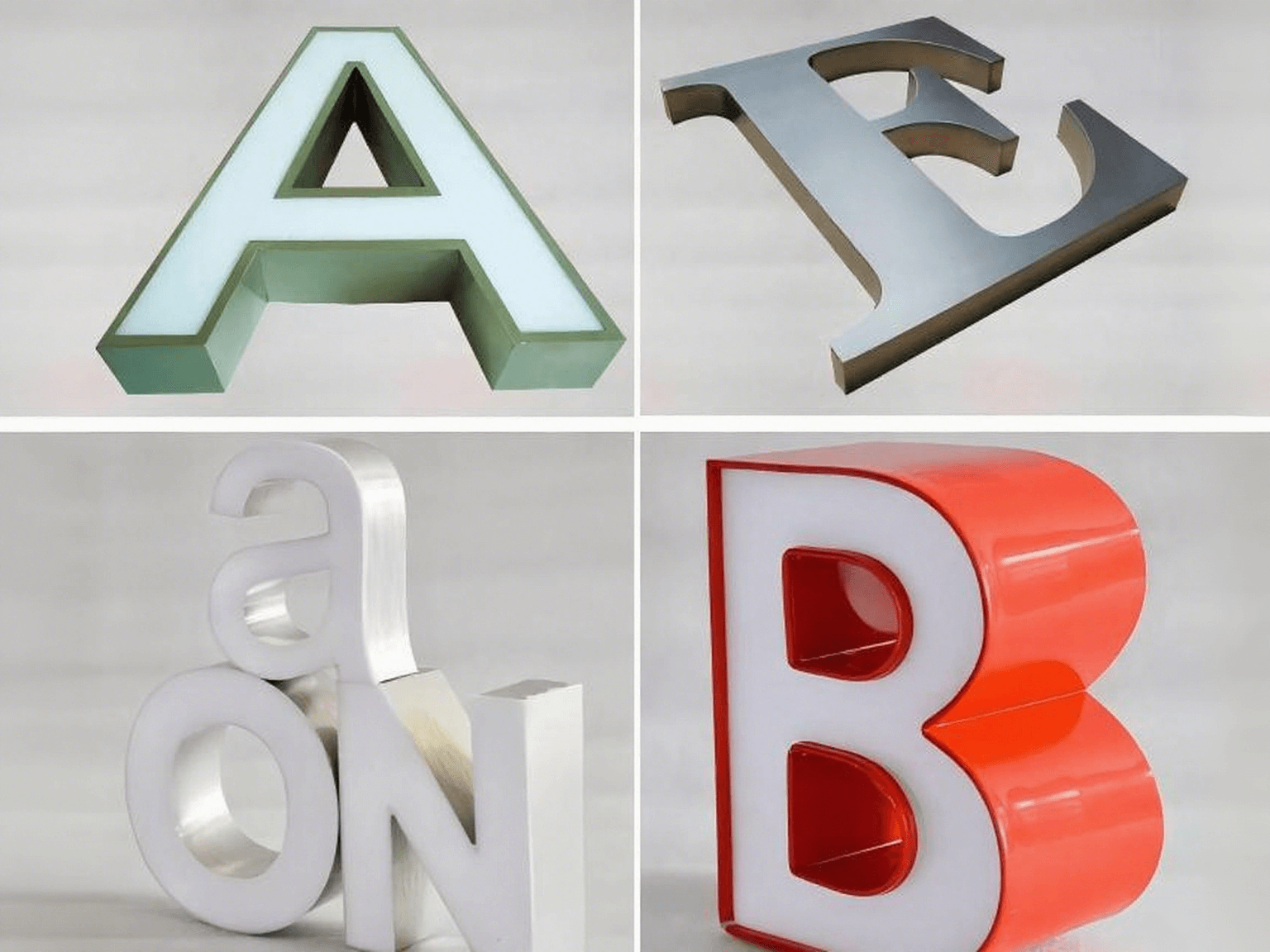

Finish the sample and the Application

Technical Data

Advantage

01.  The whole machine guarantees 2 years, and the motor guarantees 3 years

02.  Processing material width:10-160mm, Thickness: Aluminum 0.3-1.5mm, Stainless steel 0.3-1.2mm.Suitable for most Aluminum profiles

03.  All machining parts should be treated with hard chromium plating, which is wear-resistant and corrosion-resistant, especially suitable for coastal areas

04.  In the overall structure, the working platform uses a 14mm whole plate with a three-times plain grinding finish, the internal workpiece thickness is 17mm, ensuring the long-term working stability and accuracy

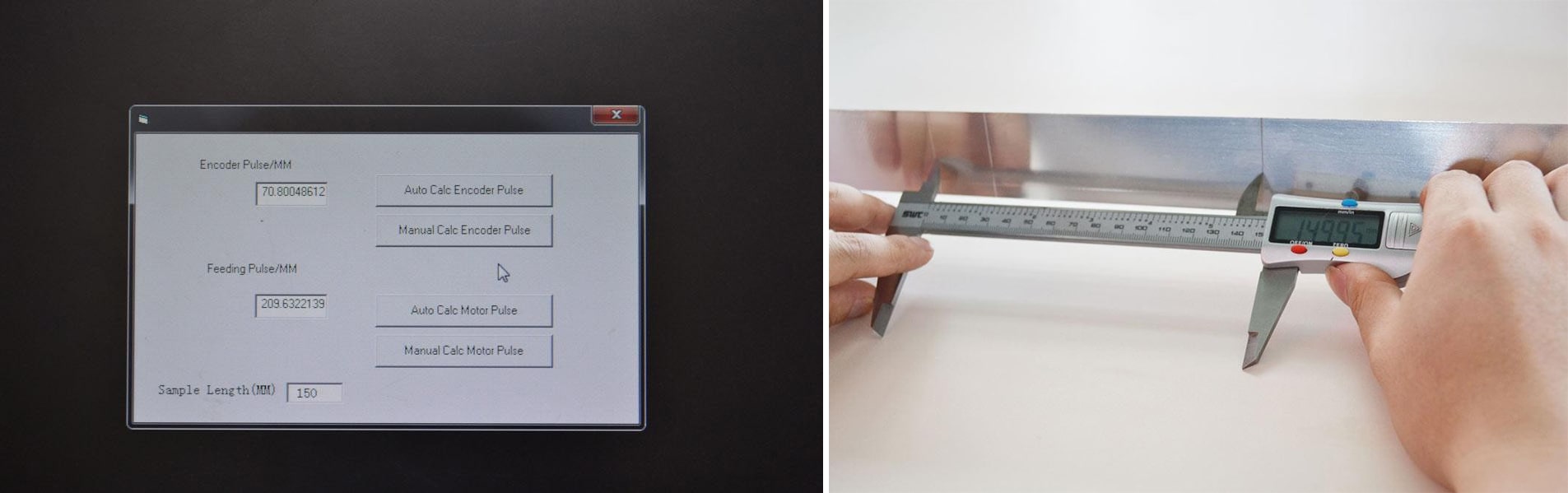

05.  The software has a Length closed-loop control system, with a length precision of ≤0.1mm. Meanwhile Independent development software system, which can be updated according to customer needs, and more easier to use

06. The motor and driver use the transformer with a voltage digital display device to replace the switching power, monitor the voltage situation, and remind customers to do the corresponding treatment when the voltage is unstable

07.  The whole machine weighs 530 kg and is more stable

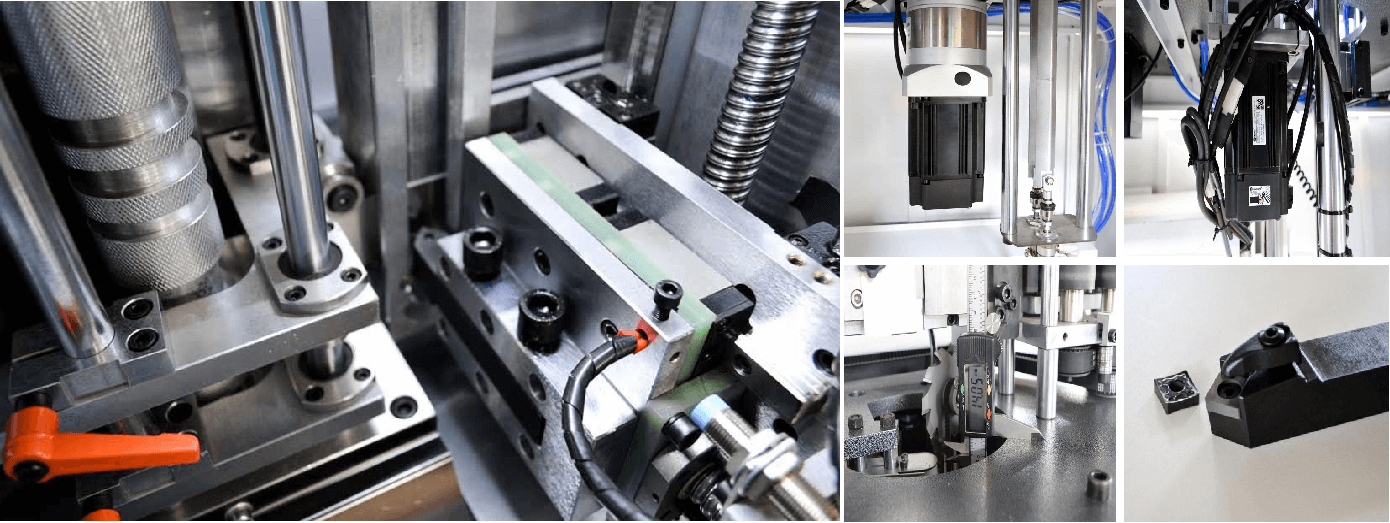

Feeding

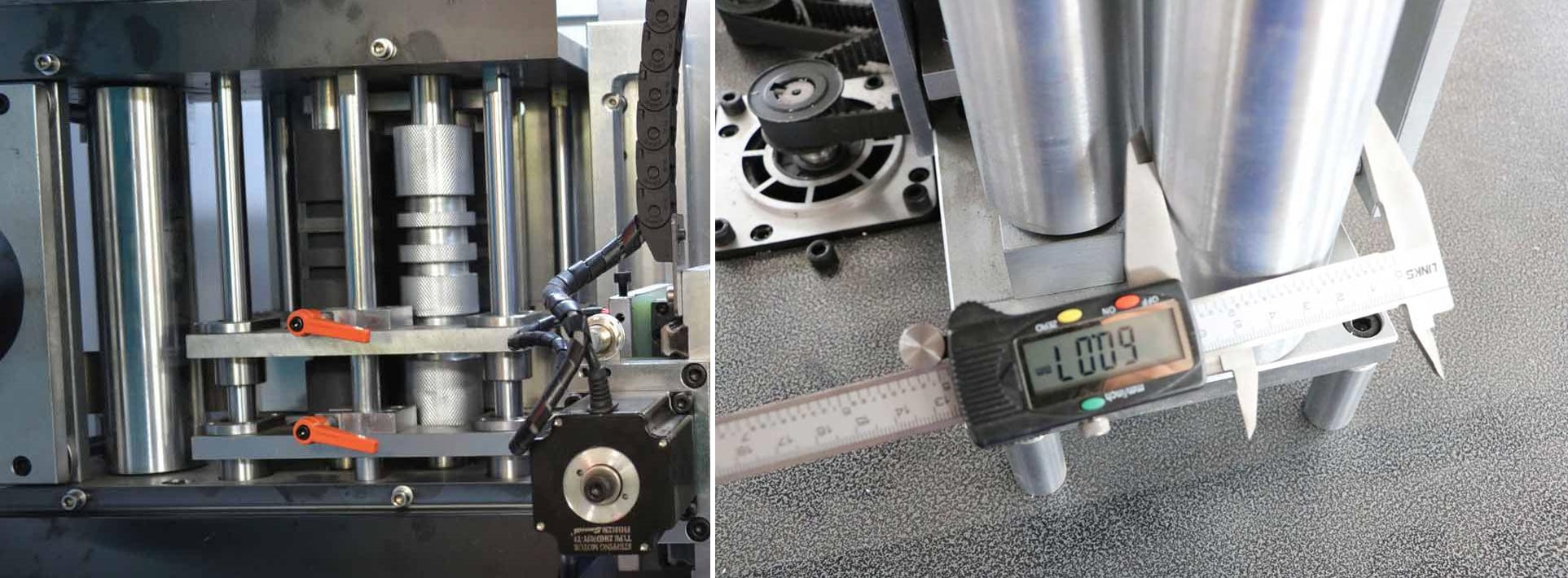

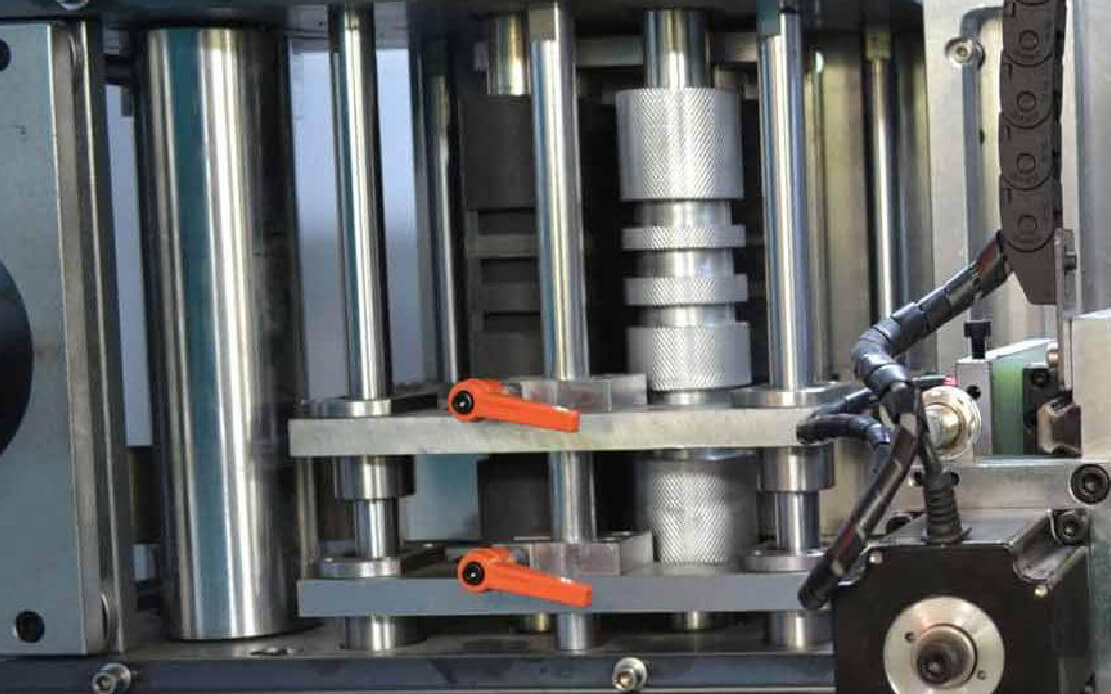

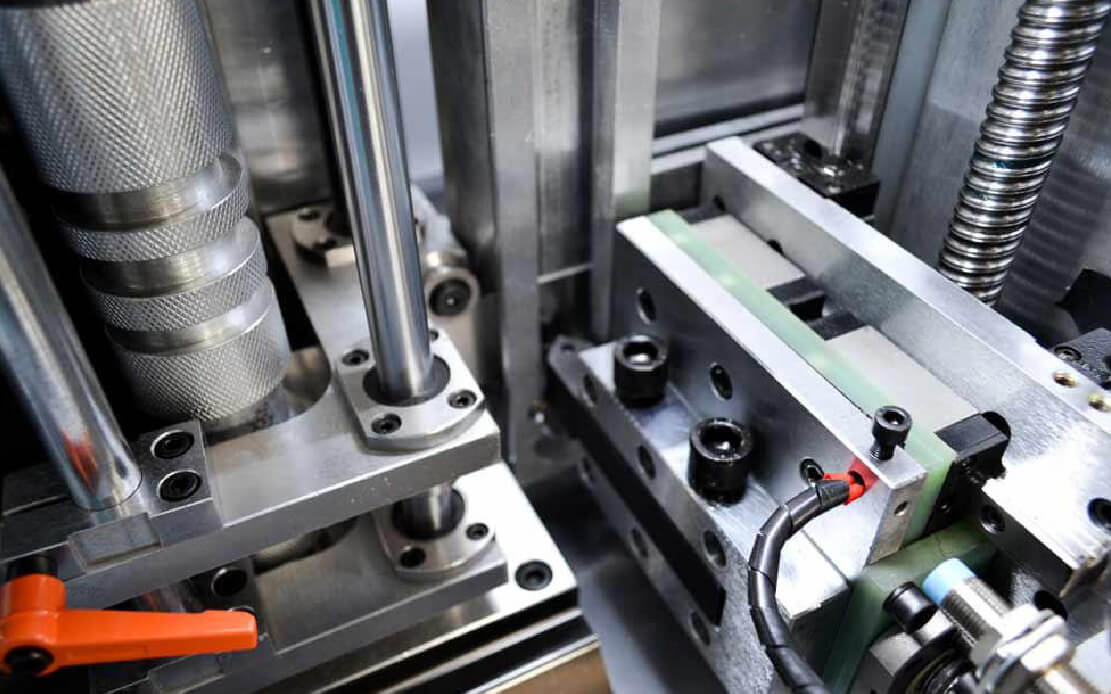

01.  The feeding roller has a diameter of 45mm and is installed with an encoder; the precision and speed are similar to the manipulator

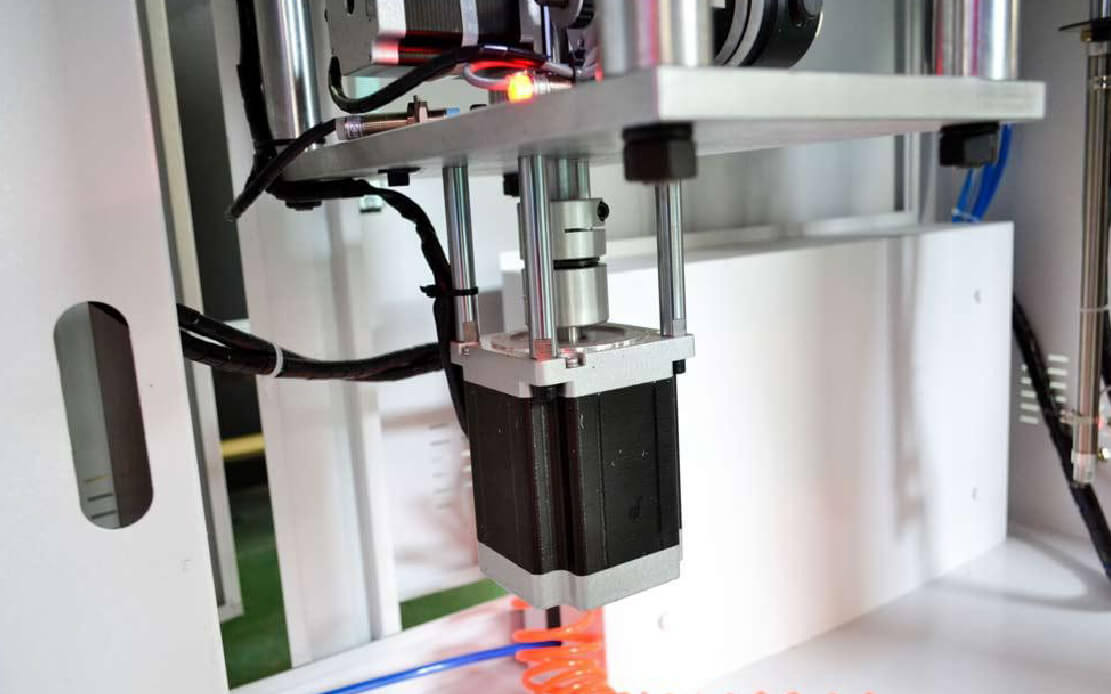

02.  Cutting mode uses motor lifting control, which is more stable, less likely to damage the material, and noise

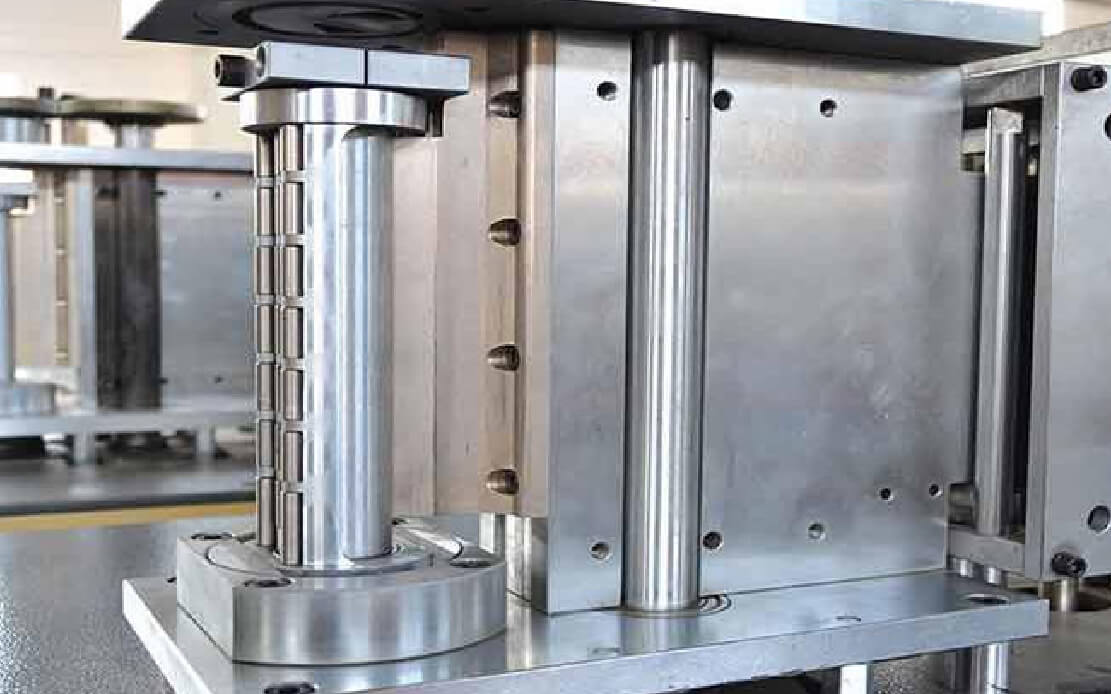

03.  Use a four-column design to ensure the cutting is stable and effective

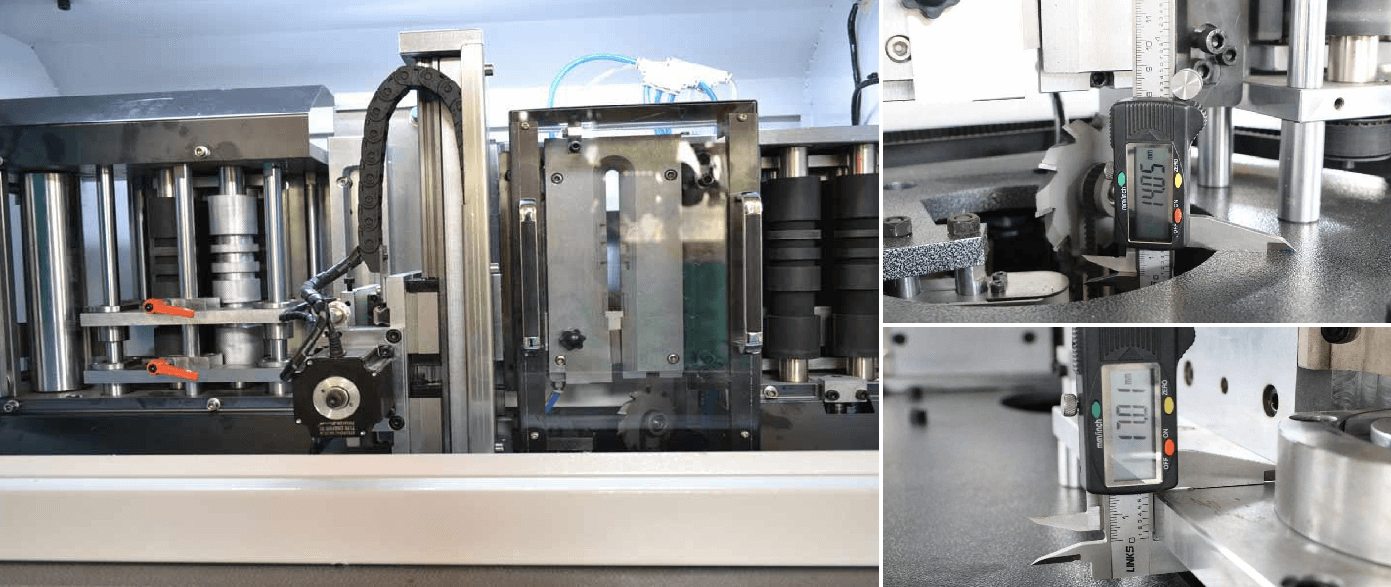

Aluminum notching

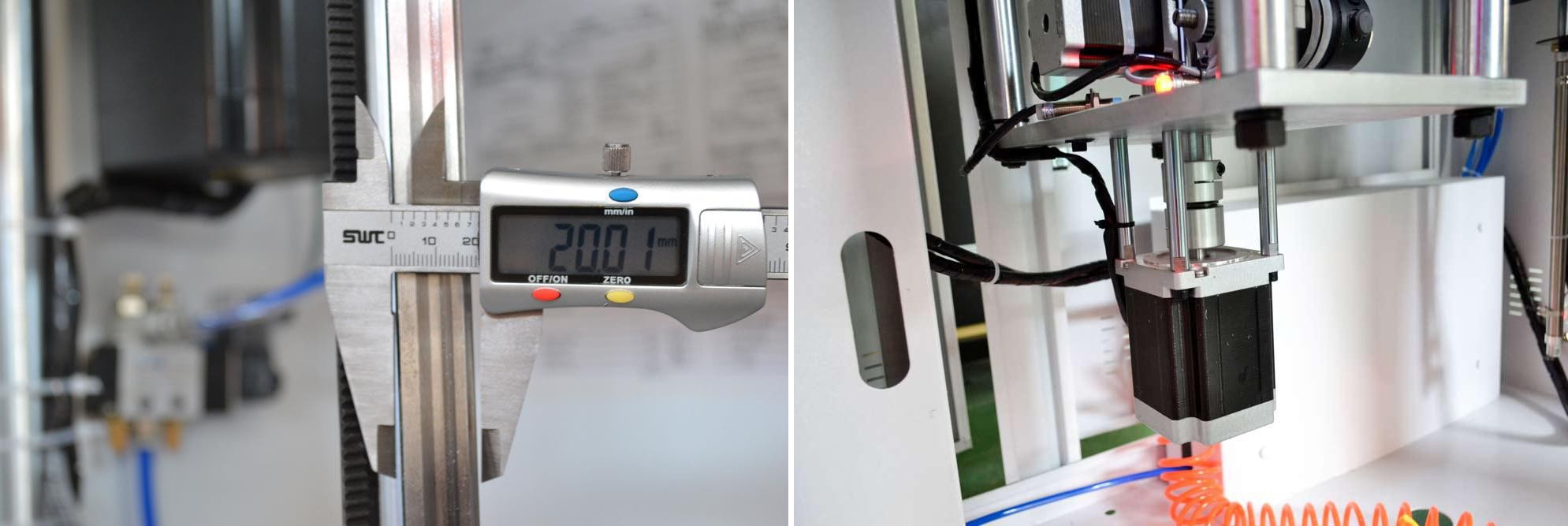

01.  Aluminum cutting uses a 20mm Taiwan PDF guide rail e knife 75mm, guaranteeing smooth cutting with a fast rotating speed and a small cutting angle

02.  Cutting mode uses motor lifting control, more stable,   less likely to damage the material, and noise

03.  Use a four-column design to ensure the cutting is stable and effective

Stainless steel Notching

01.  Planer has current induction automatic knife adjustment, very easy finish cutting depth through software, and more precision than manual adjustment

02.  Double Japan Fuji Servo motor and driver for cutting and bending, 20mm leading screw, more stable, and higher precision. One set of benders can service 6sets of laser welding work

03.  The Planner cuttusesua se carbide blade, each blade saves 8 sides; each side can work about 7000 times,  the use cost is very low, and the cutting effect is beautiful

Bending

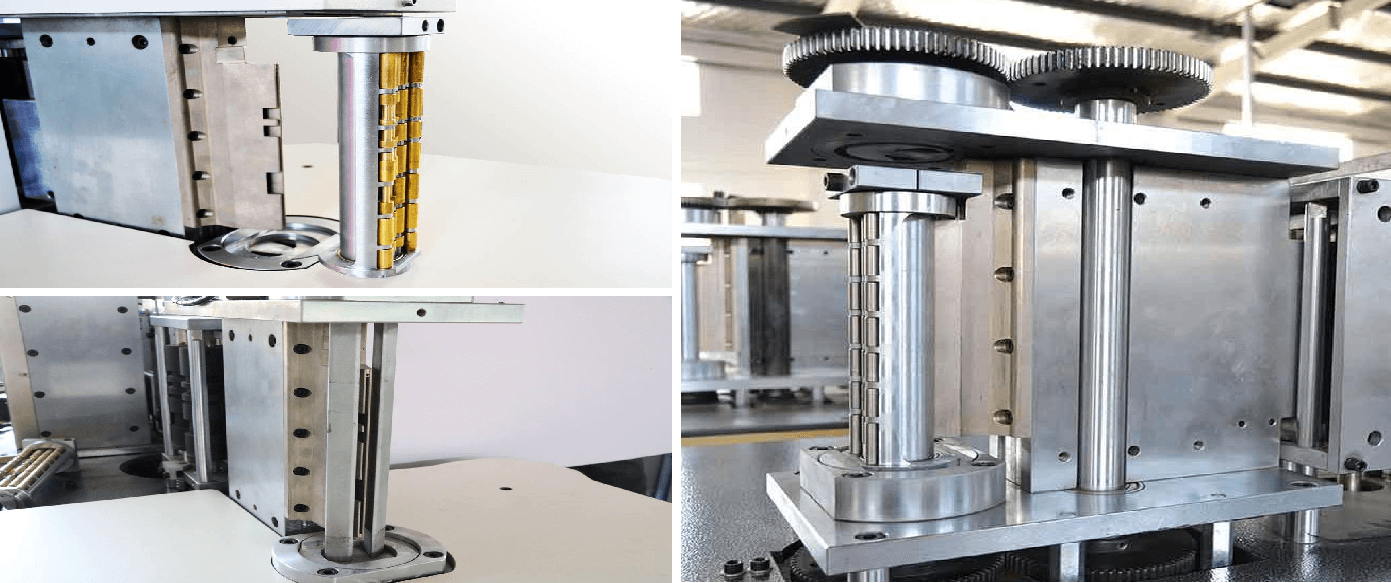

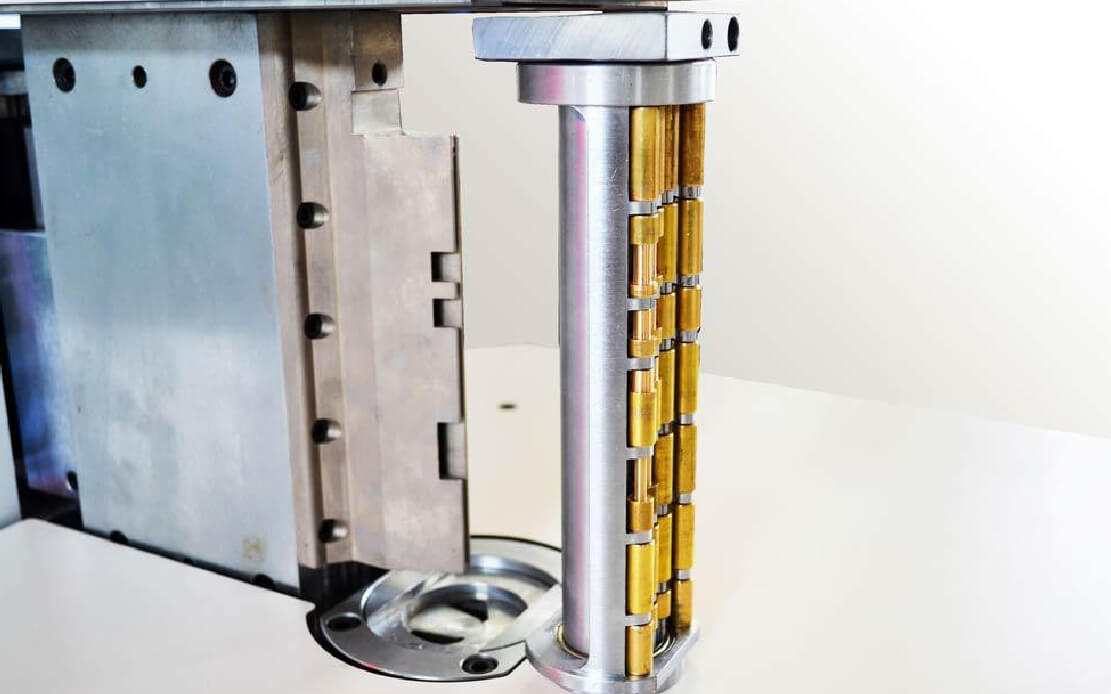

01.  Use a double arc bender design, lifting arc beating and squeezing, for the bender with one-button disassembly,  usually one minute, can finish improving the working efficiency

02.  In the of consistency, the lifting arc beating is better than fixed single-axis arc beating. The Stainless steel width can meet 13-16cm.  But others only meet 8-10cm

03.  There are two groups of grinding gears on the arc bending part, ensuring arc bending and reducing noise

Spare part

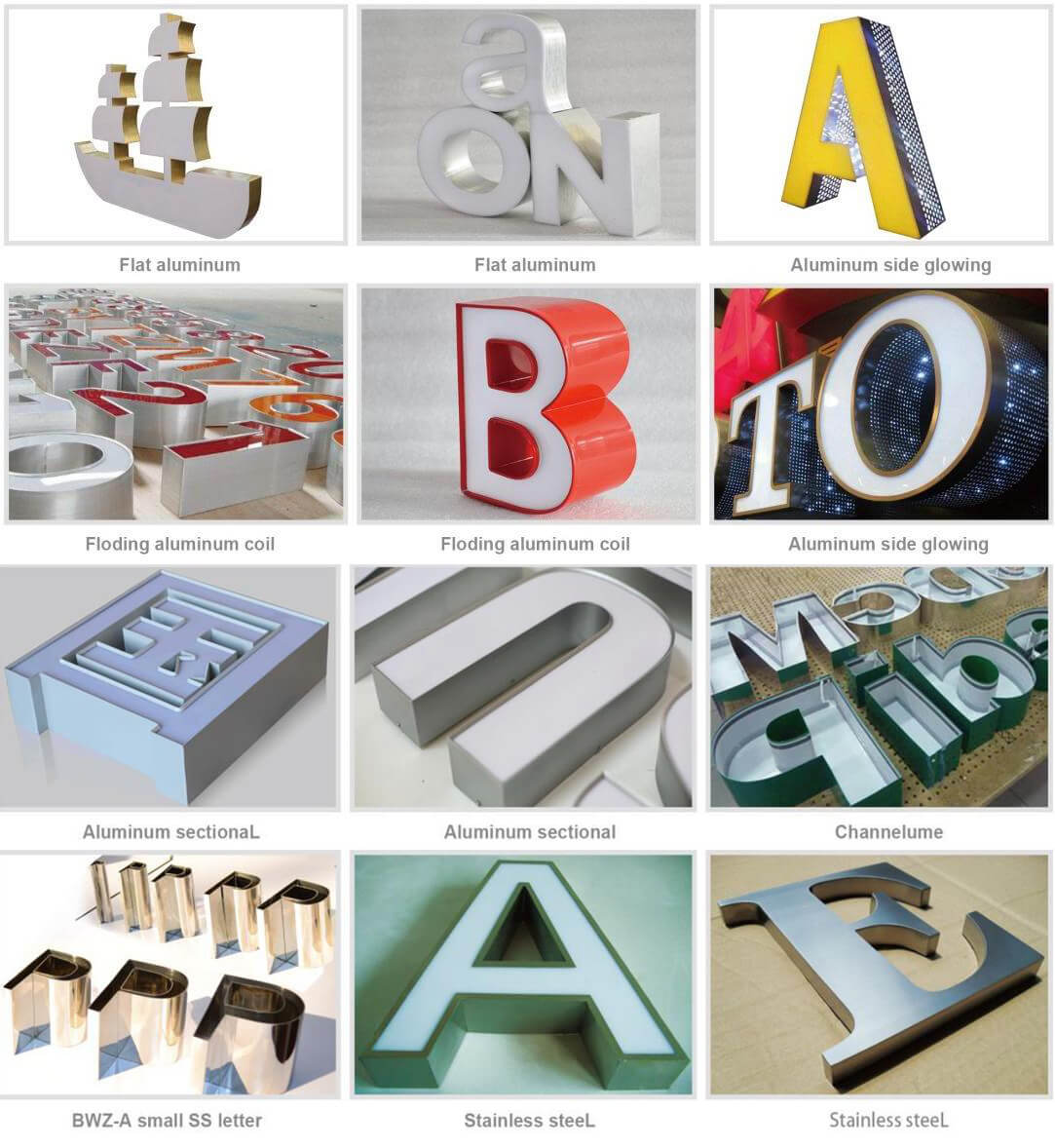

Sample showing
