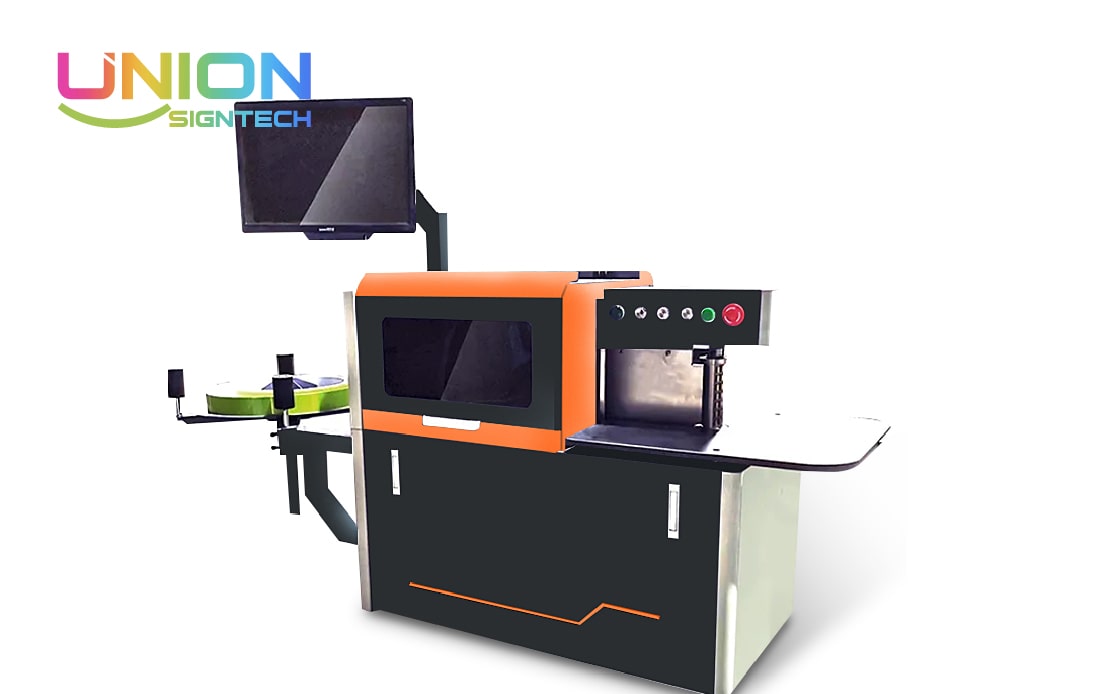

ULB-100S Small flat aluminum channel letter bending machine
Application field
The application range of the Channel Letter Bending Machine is generally in the advertising industry. When the advertising company needs to make luminous characters for the shops, it needs to use the channel letter bending machine to produce them. The channel letter bending machine can process flat aluminum material without damaging the material. The processing precision is high, and the speed is fast. The material thickness and tool adjustments are all adjusted by software, making it more convenient and faster
Technical Data
| Model | ULB-100S |
| Function | Automatic feeding, slottin,g, and bending |
| Applicable Material (Alu=Aluminum) | Flat Aluminum |
| Material Width | Flat Alu：≤100mm(4″) |
| Material Thickness | Aluminum：0.3~0.8mm(0.03″) |
| Bending Radius | 3mm |
| Feeding | φ30mm feeding wheel Encoder |
| Slotting System | Planner slotting |
| Bending | Coupled extrusion-general arc bender |
| Control System | ADT |
| Power | 300W |
| Air Pressure | 0.4-0.8MPa |
| File Format | Dxf, Ai, Plt |
| Working Voltage | 220V/ 50-60HZ/1P |
| Net Weight(kgs) | 110 |
| Overall Size(mm)(L*W*H) | 1560*600*1100 |
Advantage
01. Professional device for working with flat aluminum SUPER LETTERS thickness from 0.3-0.8mm, and a Width of less than 100mm

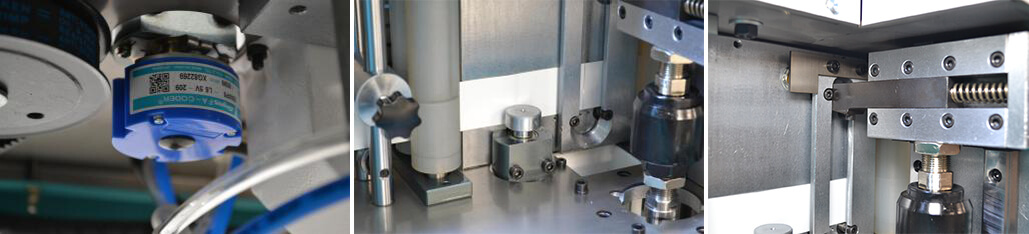

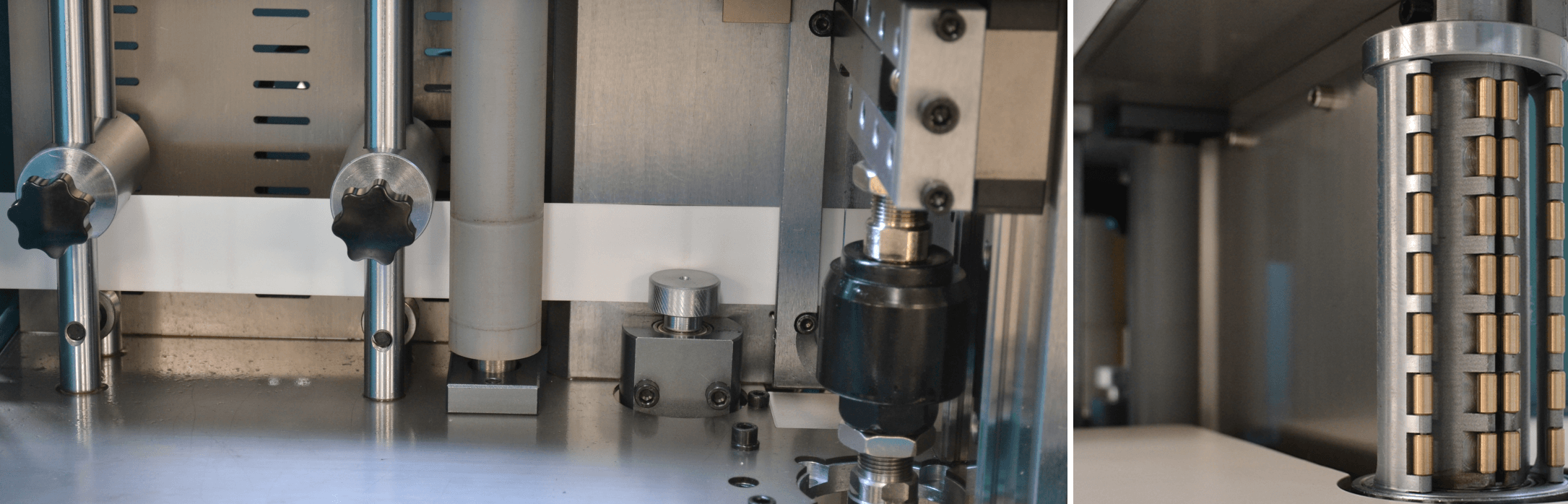

02. An innovative combination of feeding, cutting, and bending multi-axis linkage mechanical construction, working more accurately and stably

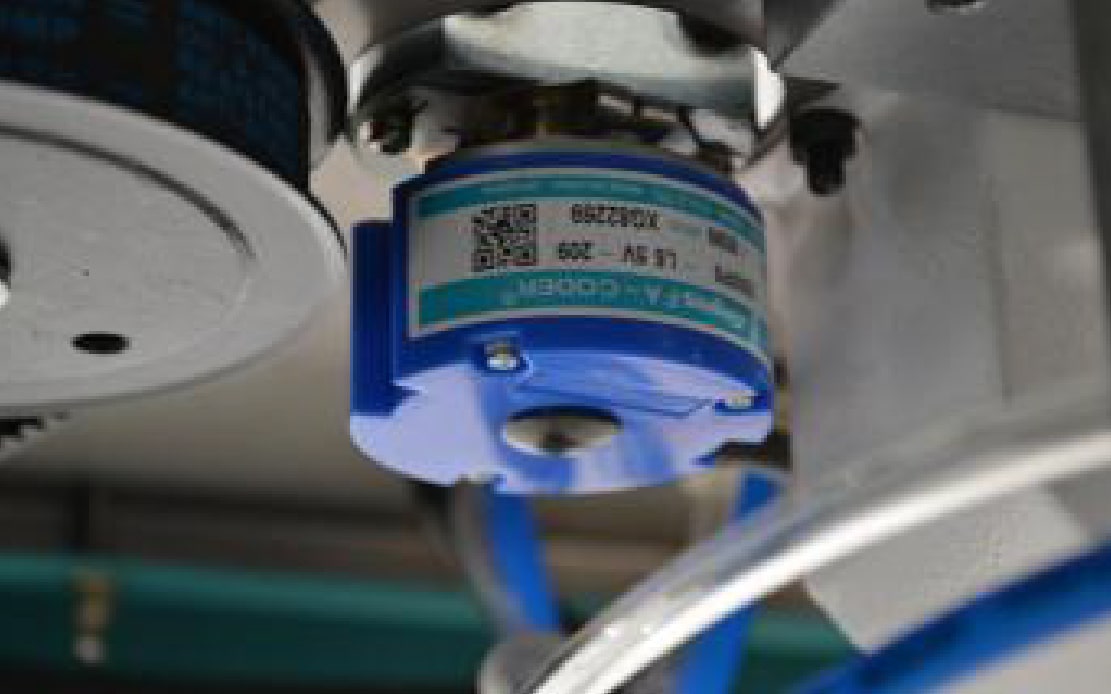

03. Equipped with an imported encoder length closed-loop control system, feeding 1 meter, the error is<0.1mm, ensuring"working" precision

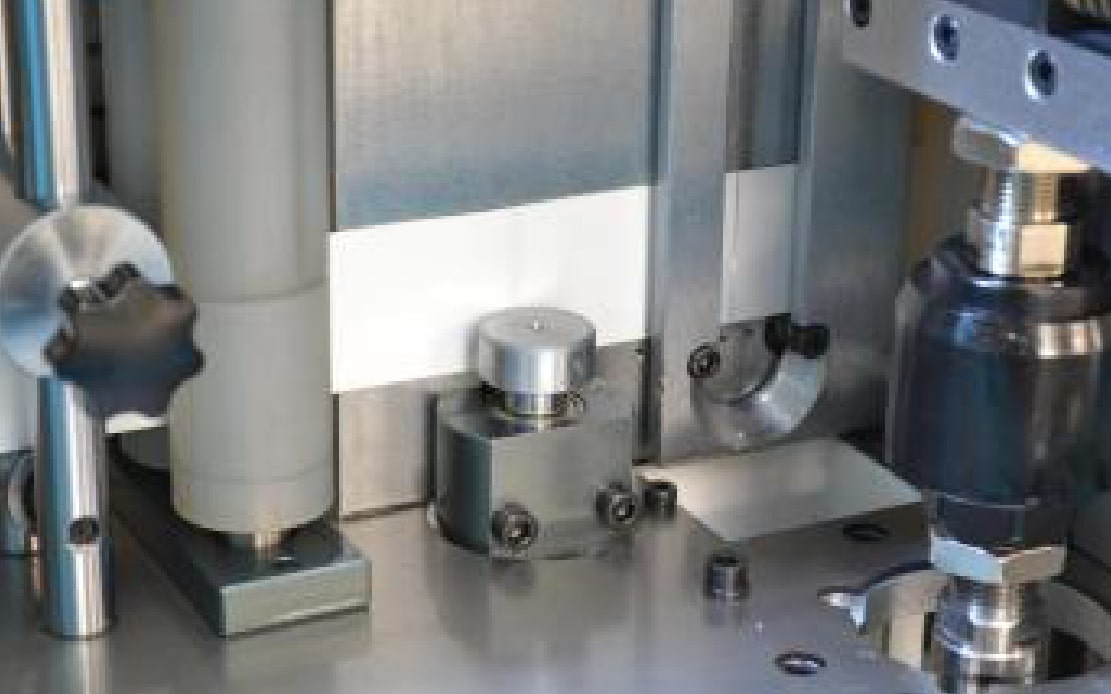

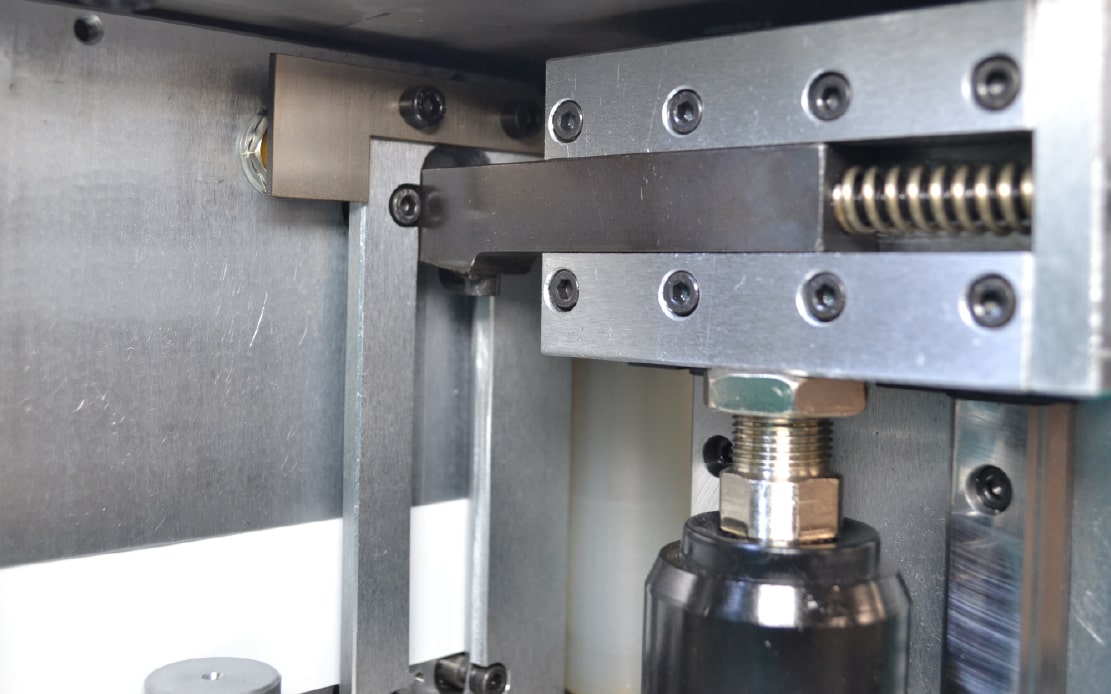

04. Cutting device uses planner tools, cutting, and square rail positioning, lower cost/stable cutting/lower noise

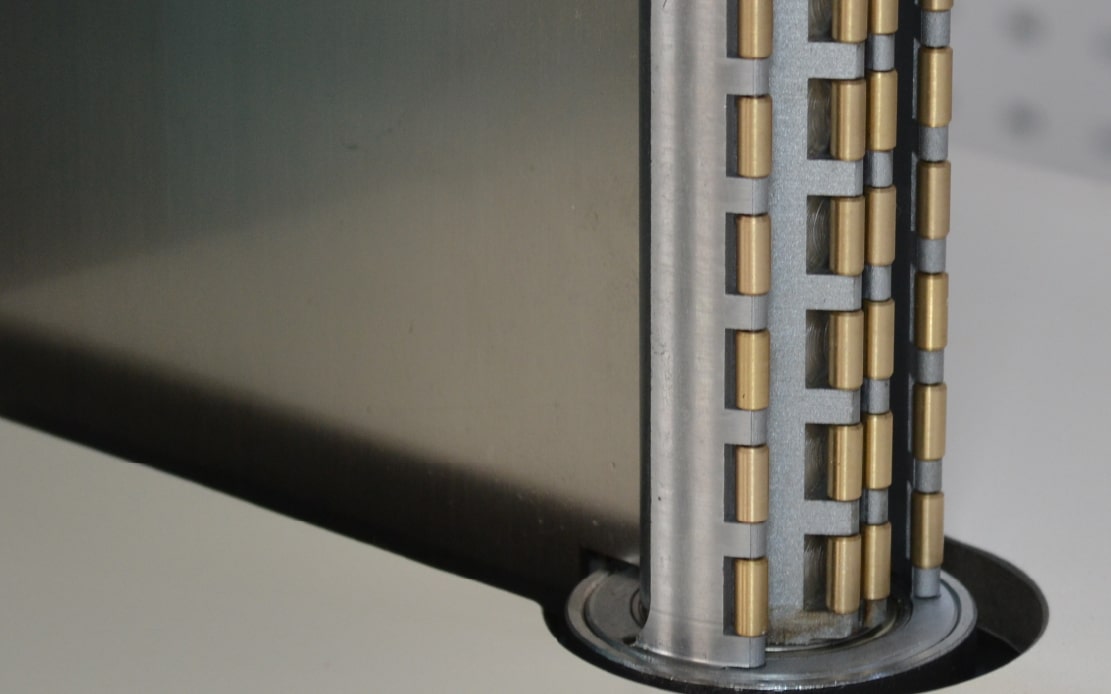

05. Plain arc bending device, intelligent compensation of rebound cent, Min bending radius meets 3mm
06. We provide a guarantee and post-warranty service, as well as support at every stage of machine operation
Spare parts & Optional parts
| Name | Qty | Name | Qty |
| Power cable | 1 piece | Relay | 1 piece |
| Allen wrench | 1 set | Photoelectric Sensors | 2 pieces |
| Control card | 1 set | U disk | 1 piece |
| Dongle | 1 piece | Fuse | 4 pieces |
| Signal cable | 1 pair | Cable | 1 piece |
| Belt | 3 piece |
Optional parts

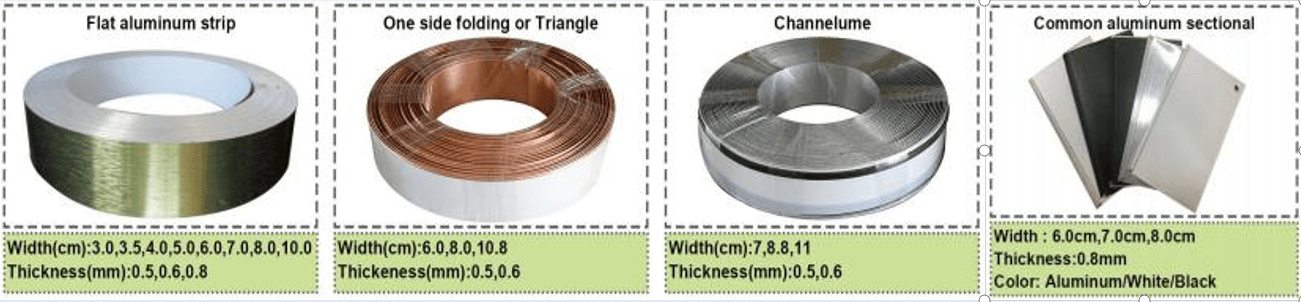

01. Aluminum profiles: We have different types and colors of aluminum profiles to choose from. When you need will give you a quotation sheet
02. Computer: When this machine is working, there is a control card that needs to be installed in the computer. For a control system, no limit
03. Compressor: Need a 0.3-0.6MPa Air compressor working
