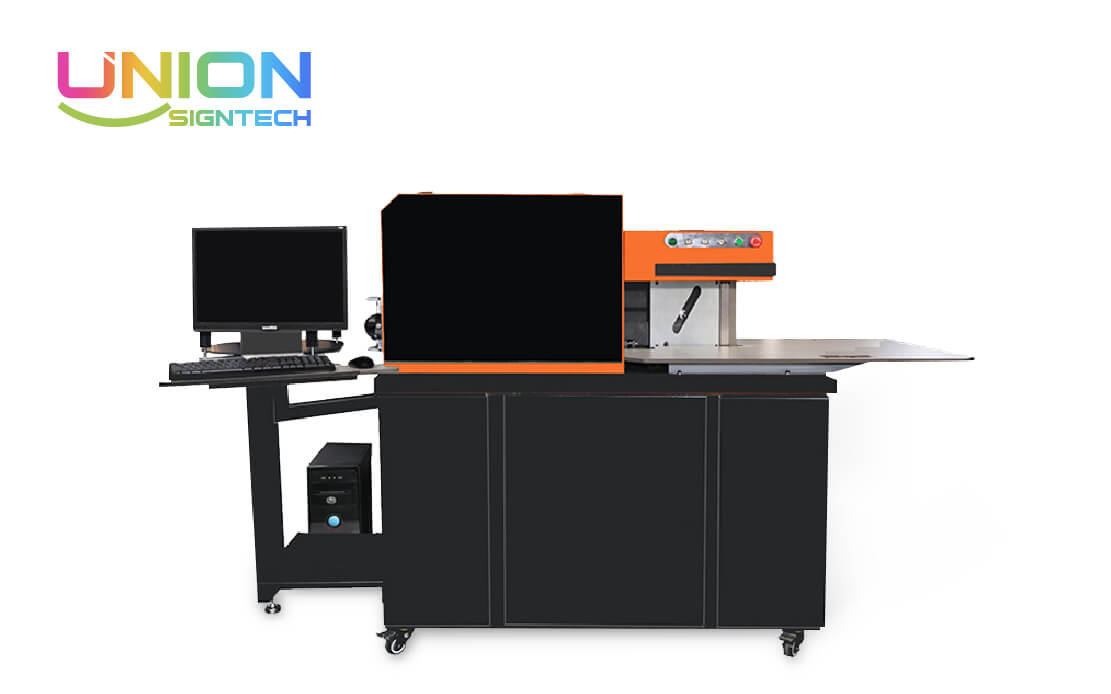

CNC Letter Bender with Manipulator Auto Feeding & Punching
Technical data
The application range of the Channel Letter Bending Machine is generally in the advertising industry. When the advertising company needs to create luminous characters for shops, it uses a channel letter bending machine to facilitate production. This channel letter bending machine can process flat metal materials, such as stainless steel, aluminum alloy, and galvanized iron, without damaging the material. The processing precision is high, and the speed is fast. The material thickness and tool adjustments are all adjusted by software, making it more convenient and faster

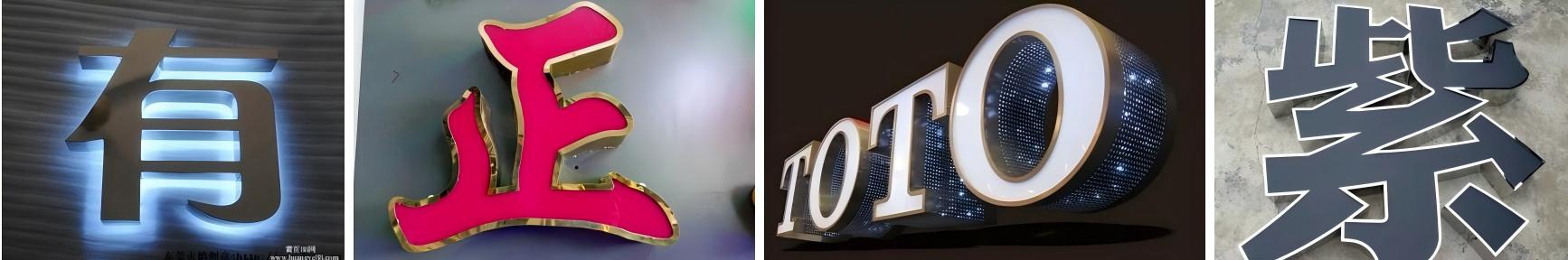

Finish the sample and the Application
Technical Data
| Model | ULB- 220FM | ULB- 130FM |
| Function | Automatic feeding, slotting, and bending | |
| Applicable material | Stainless steel, galvanized sheet, Iron, aluminum coil, etc., flat metal | |
| Material width | 20-220mm（8.66″) | 20-130mm(5.11″) |
| Material thickness | Alu：0.3~2mm(0.078″) SS:0.3-1.5mm(0.059″) | |
| Mini-Bend radius | R≥5MM | |
| Minimum inner and outer angle distance | 3mm | |
| Power | 2000W | |
| Length Accuracy | 0.2mm/M | |
| Feeding Torque | >8Nm | |
| Slotting Torque Peak | >80Nm | |
| Arc Bending Torque Peak | >240Nm | |
| Working Voltage | AC220V/50-60HZ/1p | |
| Working Pressure | 0.4-0.8mpa | |
| Overall Size | 2200*800*1550mm | 2200*800*1400mm |
| Weight | 350kgs | 300kgs |

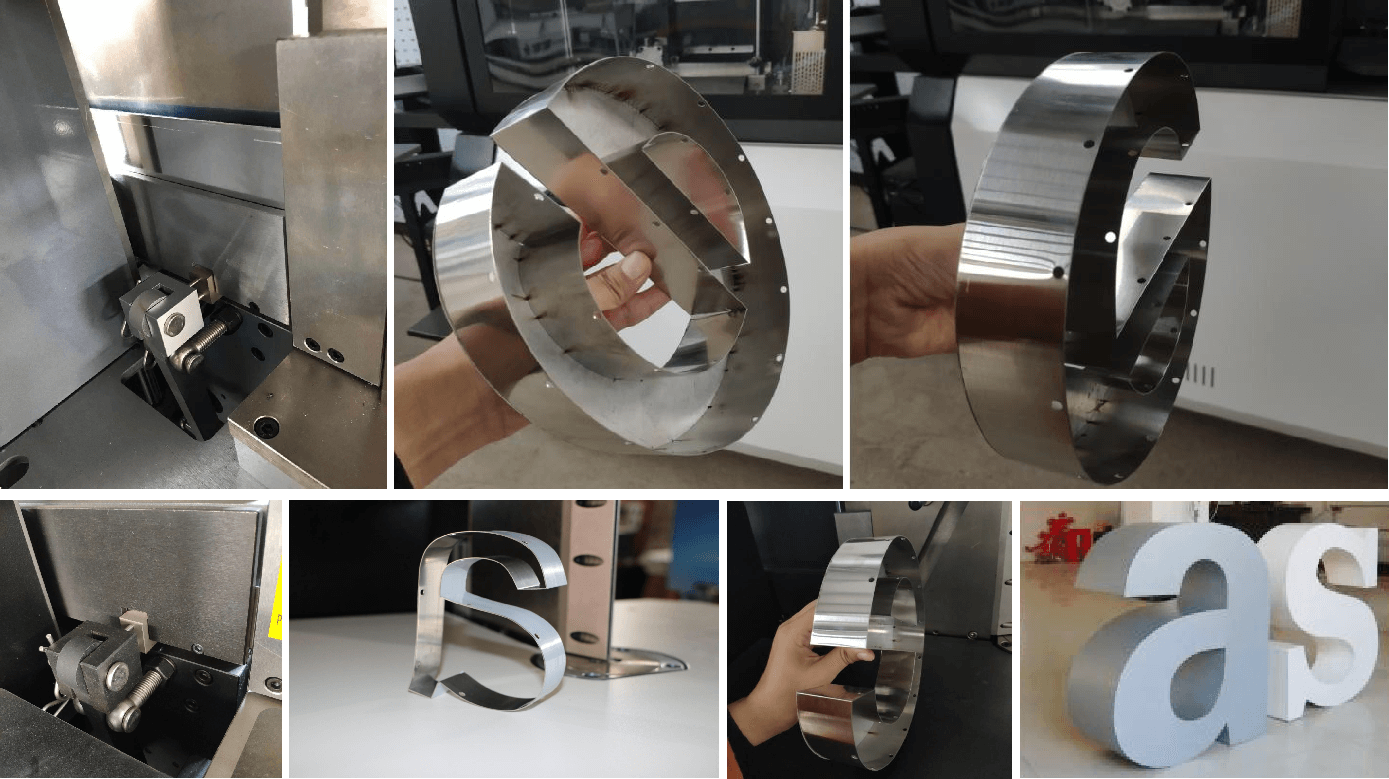

Finish the sample and the Application
Advantage

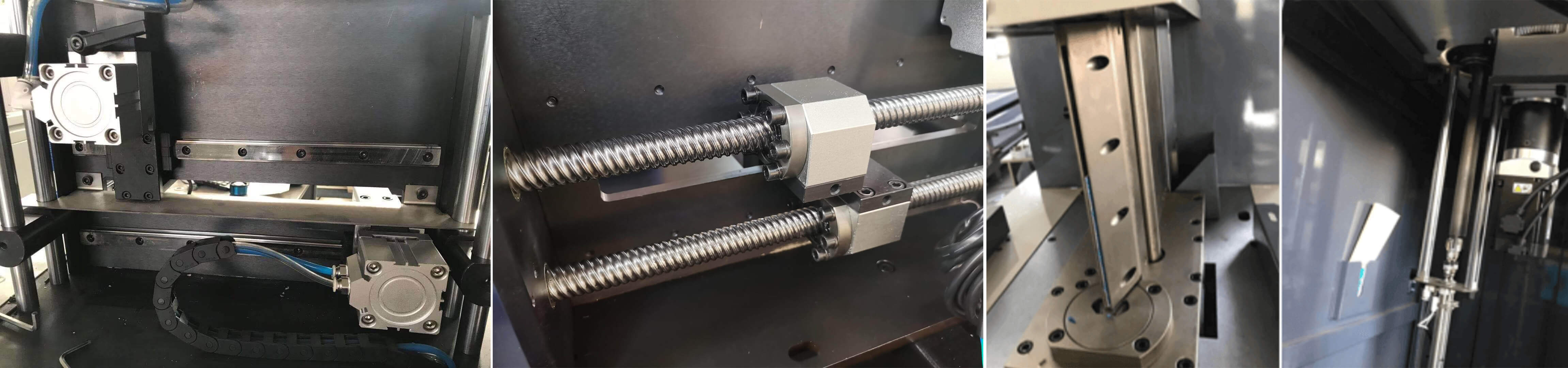

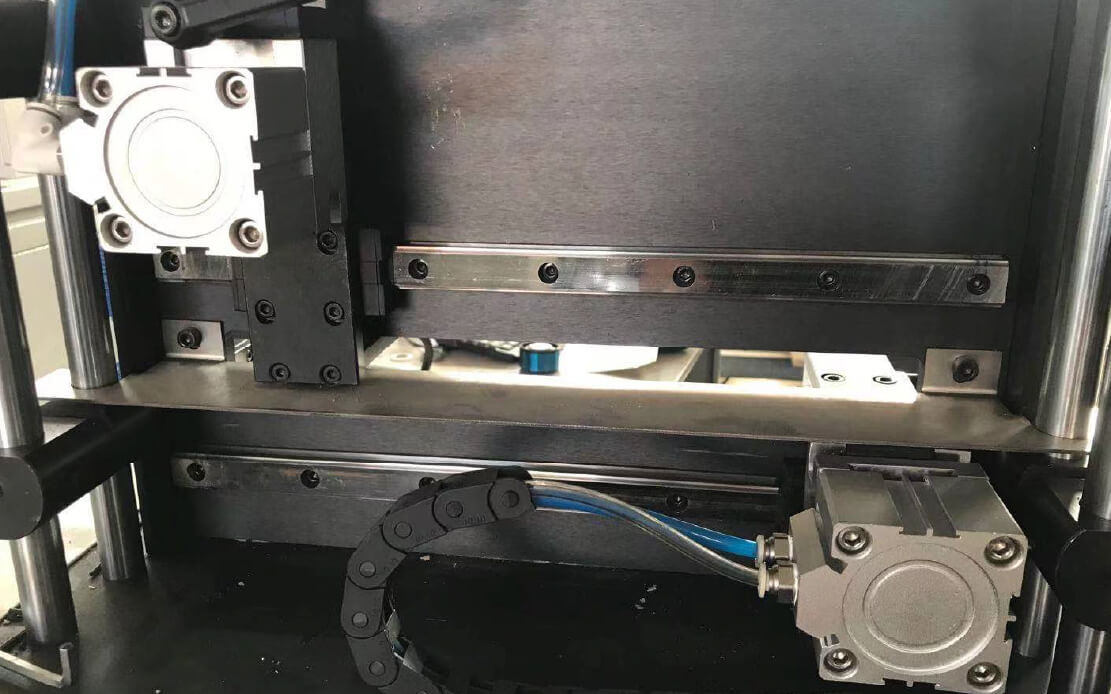

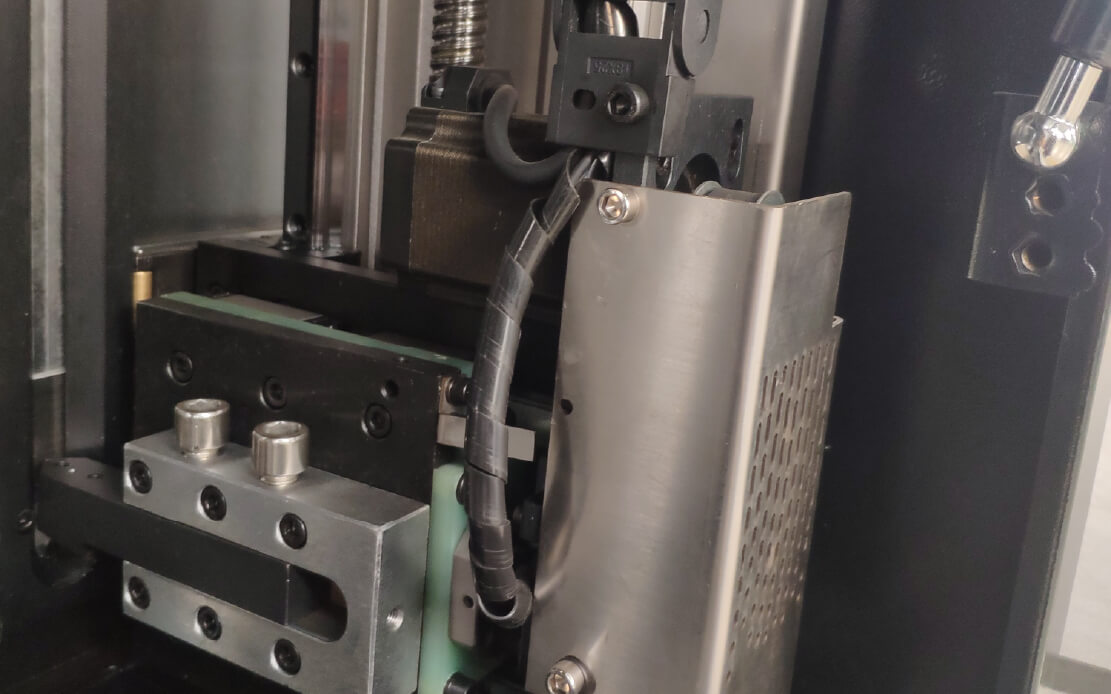

01. Use the manipulator's alternate feeding mechanism to ensure the stability of the feeding process effectively. The material clip adopts structural casting, which can improve the feeding grip and avoid scratches on the material
02. Double knife alternate bending structure, high forming degree, strong stability
03. With the punching function, more easy finish stainless steel punching is easier. Meanwhile, if you don't need it, you can also close it in the software

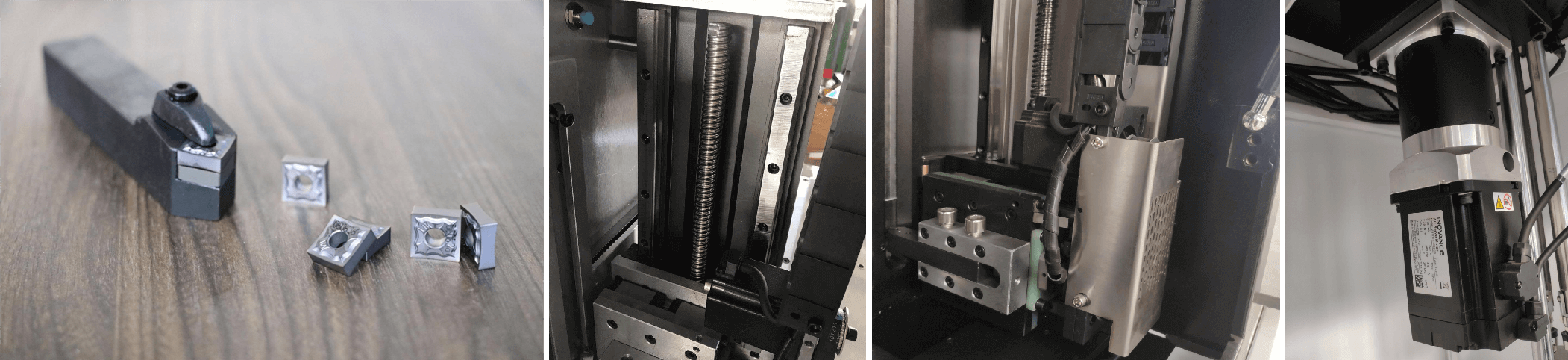

04. The planner is made of cemented carbide grain with low cost, stable cutting, and beautiful appearance. The grain contains several tips, which can be used separately and are free of maintenance and grinding. The equipment can operate at zero cost. The planer cutter system automatically sets the cutter, free of debugging and cutting depth

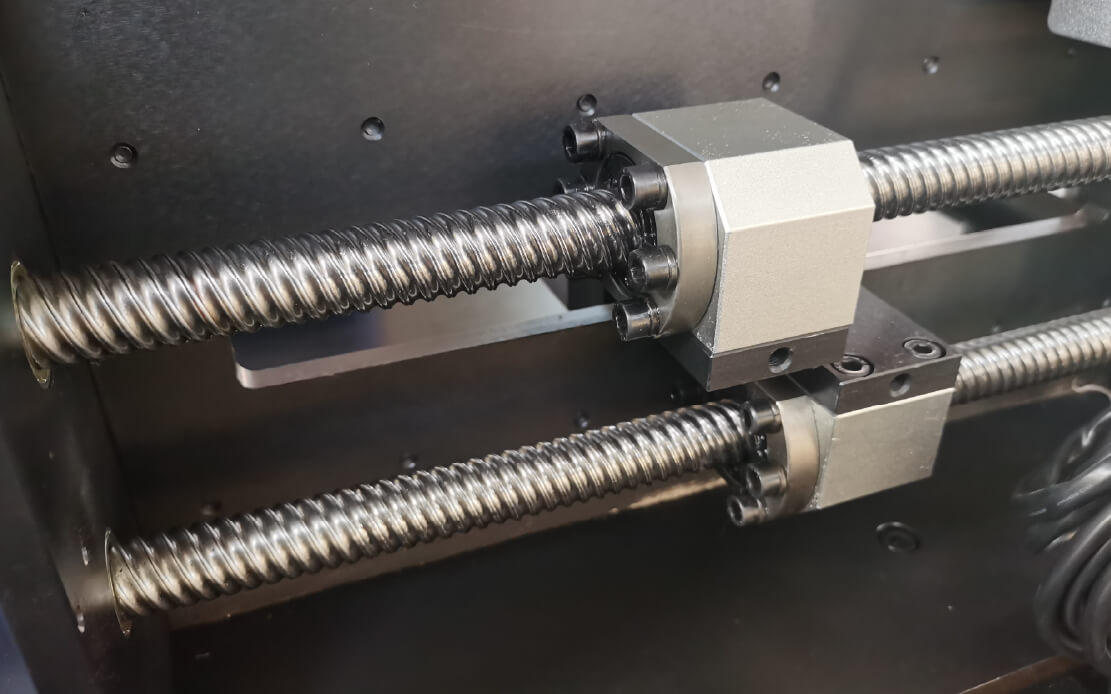

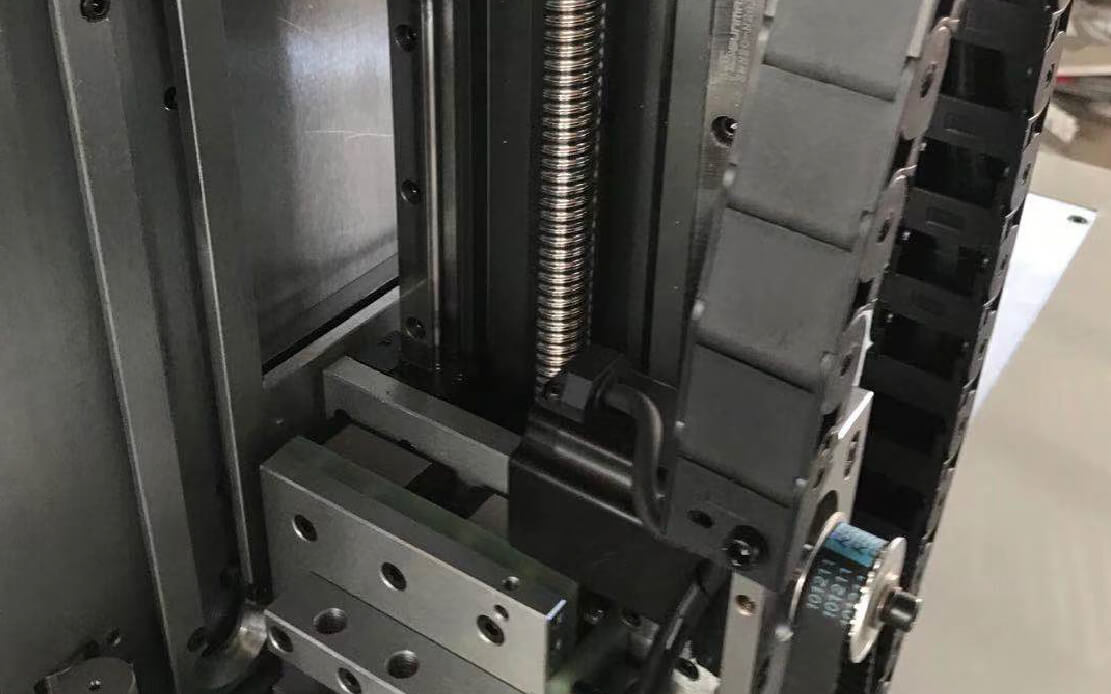

05. Lead screw plus four sliding blocks on two rails positioning drive, greater strength, and more stable cutting
06. High power servo system control, high precision, high speed, and high torque improve the working efficiency

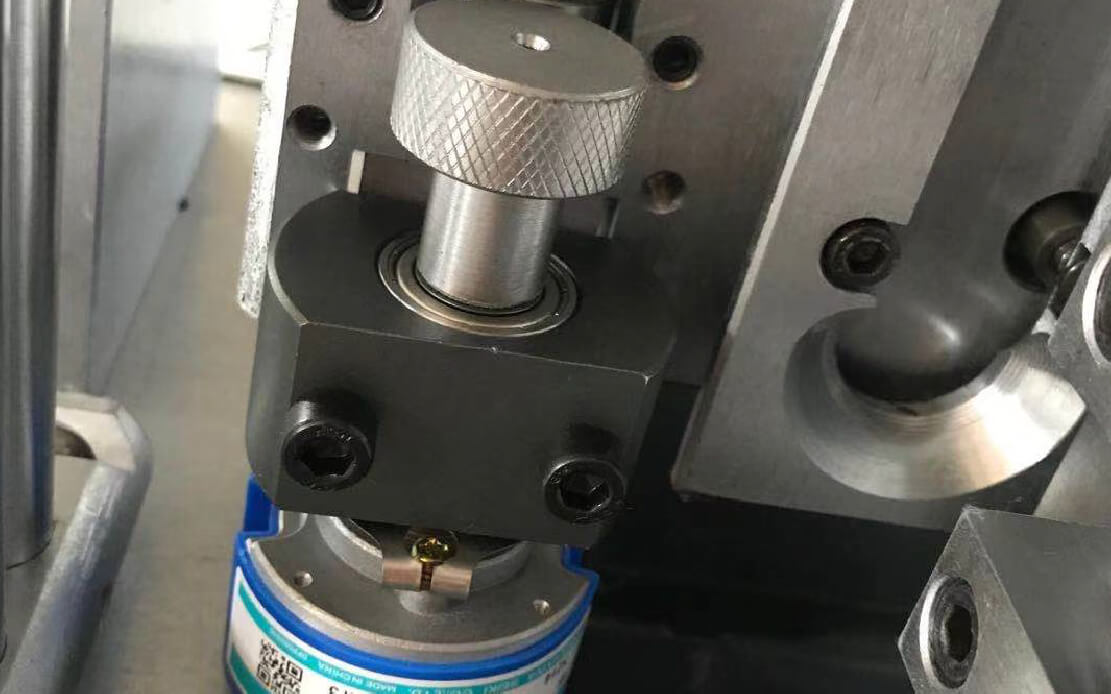

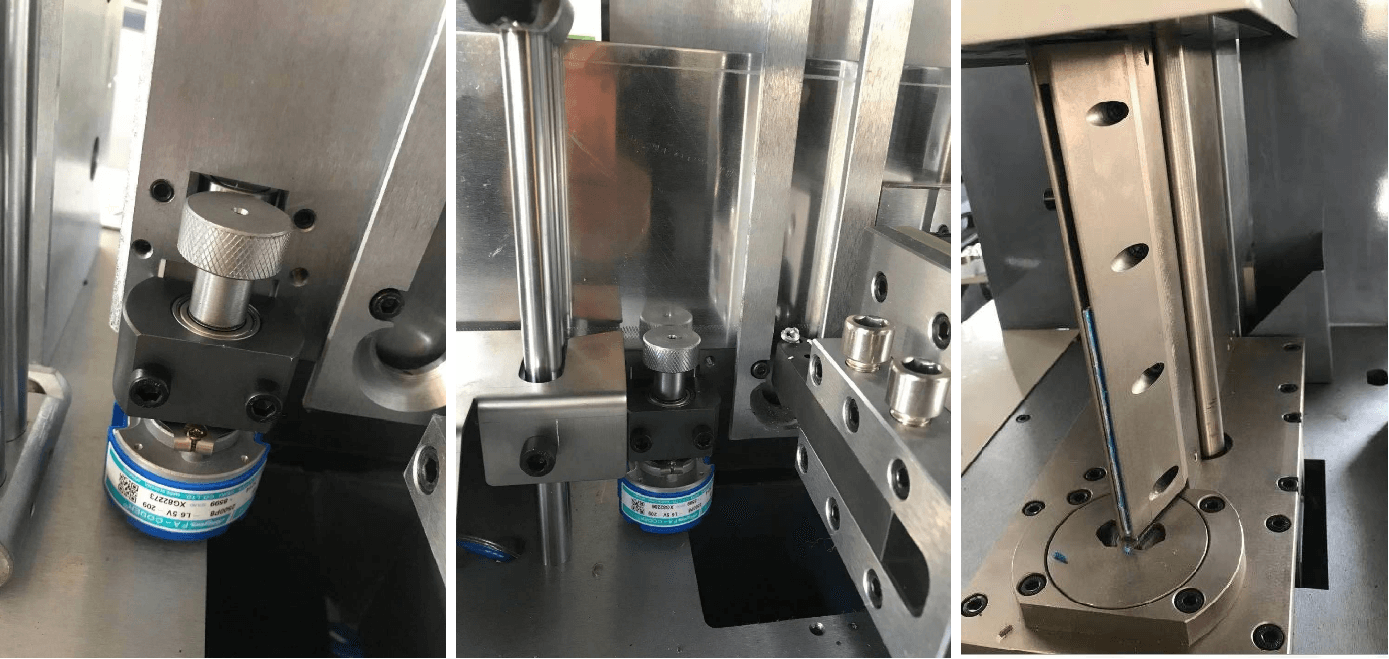

07. With a closed-loop control system, length accuracy software control, error ≤0.1mm
08. The whole machine is plated with hard chrome, wear-resistant, and corrosion-resistant
09. The software system is simple, easy to learn and operate, with professional, efficient, and thoughtful service
