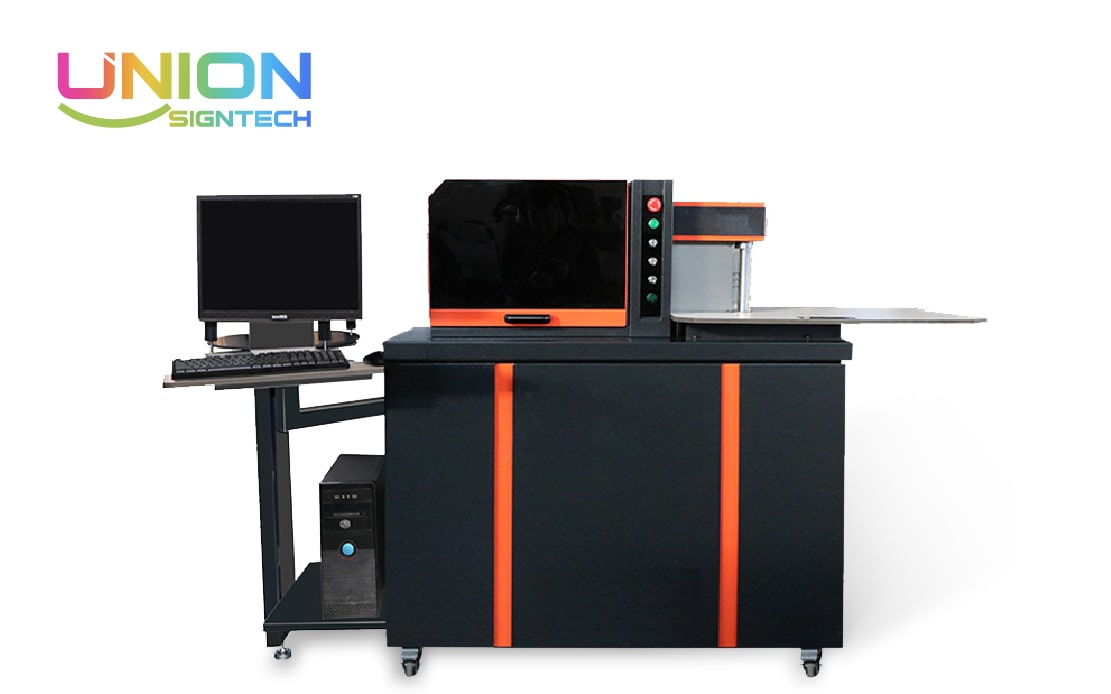

ULB-130A/180A CNC Channelume Aluminum Flat Letter Bender
Application Industrial and Material
The application range of the Channel Letter Bending Machine is generally in the advertising industry. When the advertising. The company needs to do the luminous characters for the shops; it needs to use the channel letter bending machine to make the production. The channel letter bending machine can process many materials (aluminum profiles, aluminum strips) and does not damage the material. The processing precision is high, and the speed is fast. The material thickness and tool adjustments are all adjusted by software, making it more convenient and faster

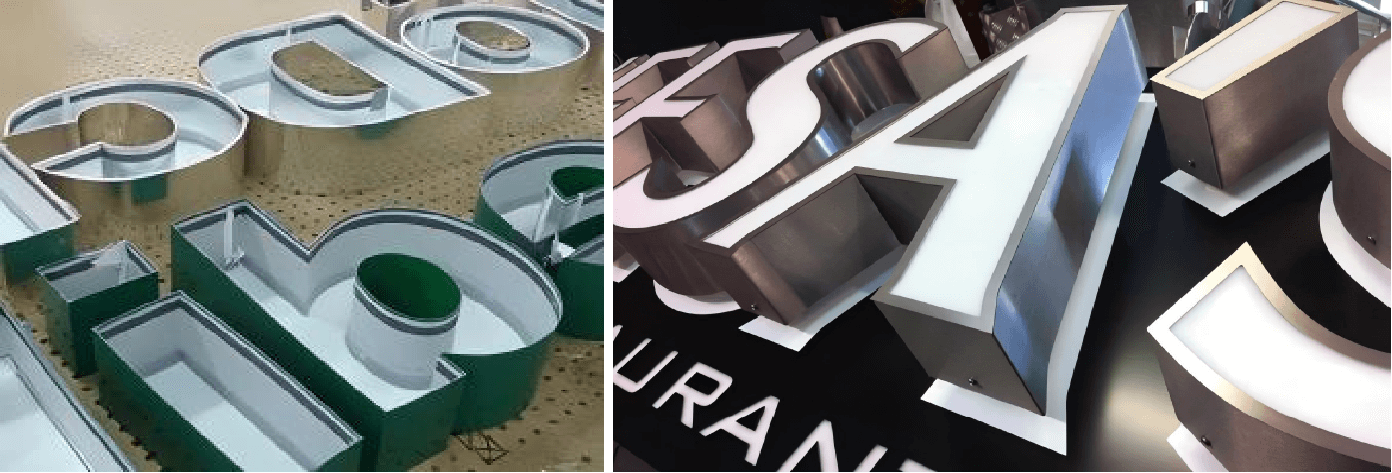

Finish the sample and the Application
Technical Data
| Model | ULB-180A | ULB-130A |
| Working Principle | High precision automatic feeding, trimming, notching, and bending | |
| Processing Materials | Flat and folding aluminum profile; Channelume | |
| Material Width | Flat Alu :≤180mm(7.08″) ;folding aluminum:≤130mm(5.11″)Channelume:70,90,110mm. | Flat Alu &folding aluminum:≤130mm(5.11″); Channelume:70,90,110mm. |
| Material Thickness | Aluminum:0.3-1.5mm(0.059″) | |
| file format | DXF、Al | |
| Mini pat radius | R≥3.5MM | |
| Mini extrusion Radius | R≥7 MM | |
| Peak Power | 1500W | |
| Length Accuracy | 0.1mm/meter 0.1mm/meter | |
| Working Pressure | 0.3-0.6mpa | |
| Voltage | 220V 50HZ 1P | |
| Overall Dimensions | 2100*800*1530mm | 2100*800*1430mm |
| N.Weight | 370kg | 350kg |

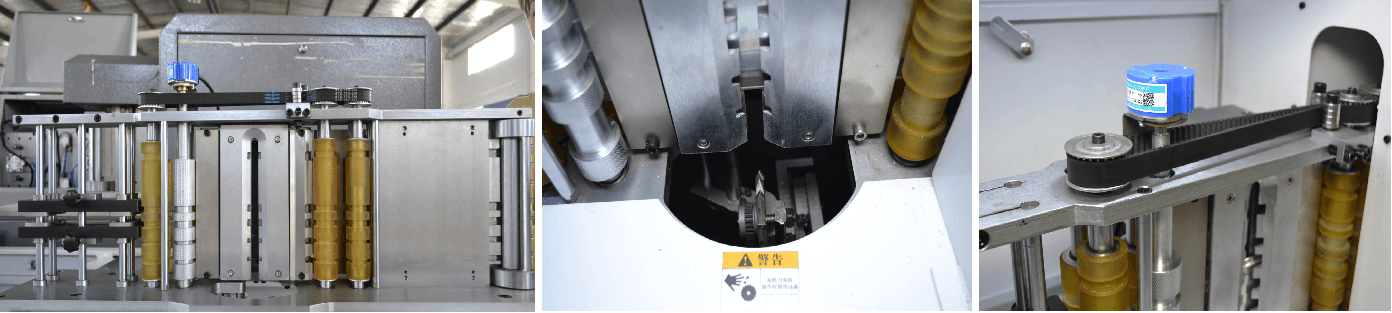

Advantage
01. Processing material width:10-180mm, Thickness: Aluminum 0.3-1.5mm. Suitable for most Aluminum profiles
02. All machining parts are to be treated with hard chromium plating, which is wear-resistant and corrosion-resistant, especially suitable for coastal areas
03. All machining parts are treated with hard chromium plating, which is wear-resistant and corrosion-resistant, especially suitable for coastal areas

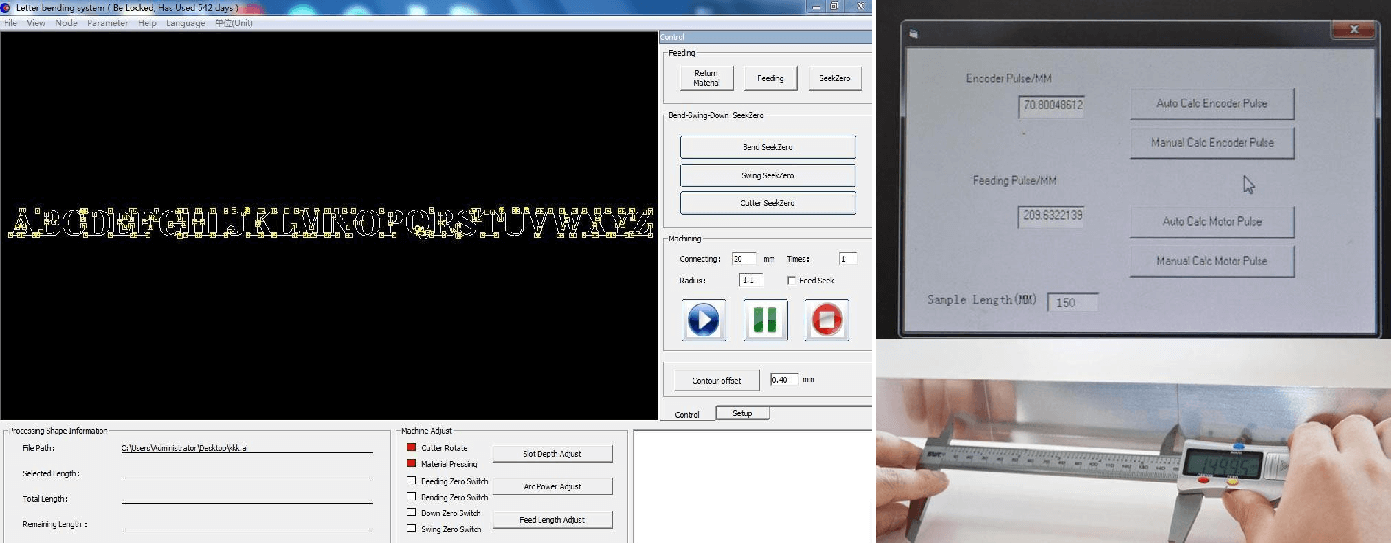

04. In the meantime, an Independent development software system, which can be updated according to customer needs and more easier to use

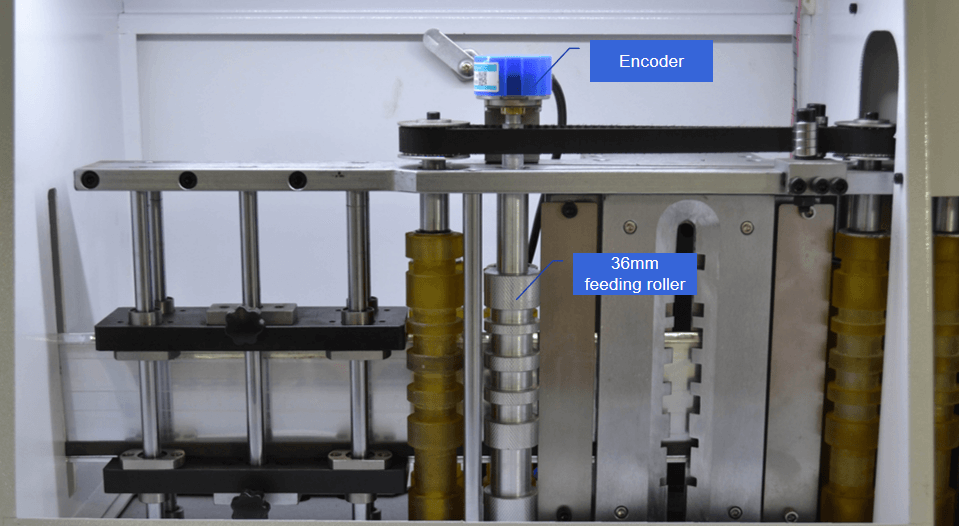

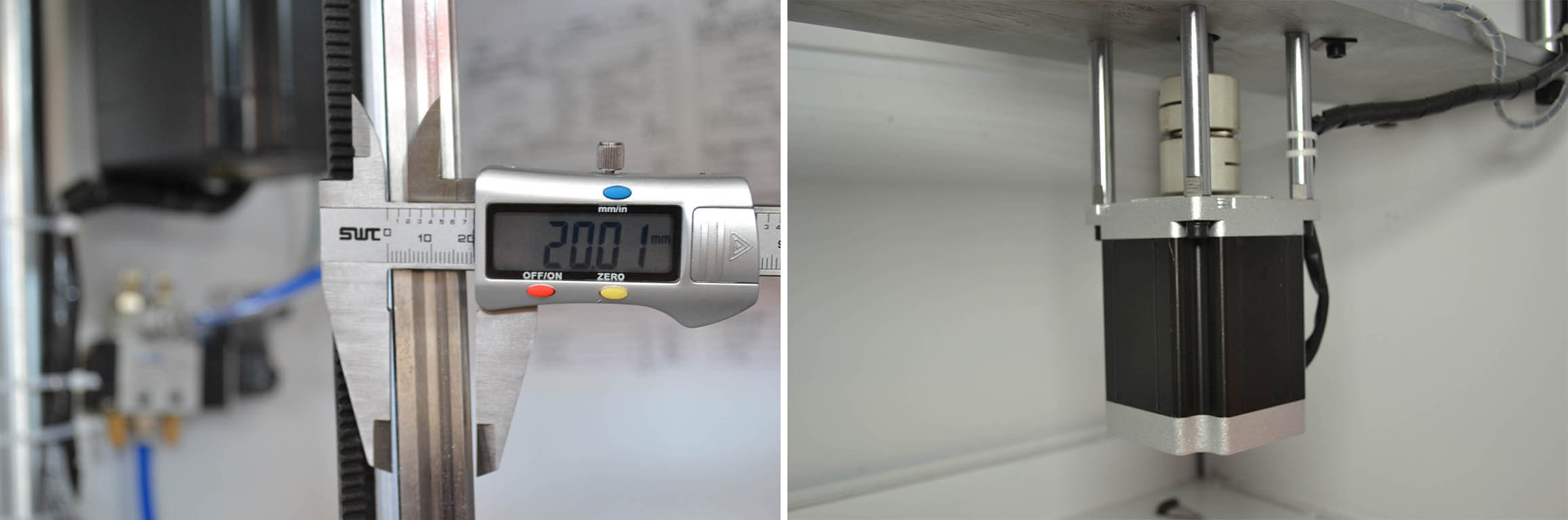

The software has a Length closed-loop control system, a length precision of ≤0.1mm
05. The whole machine weighs 300kg and is more stable

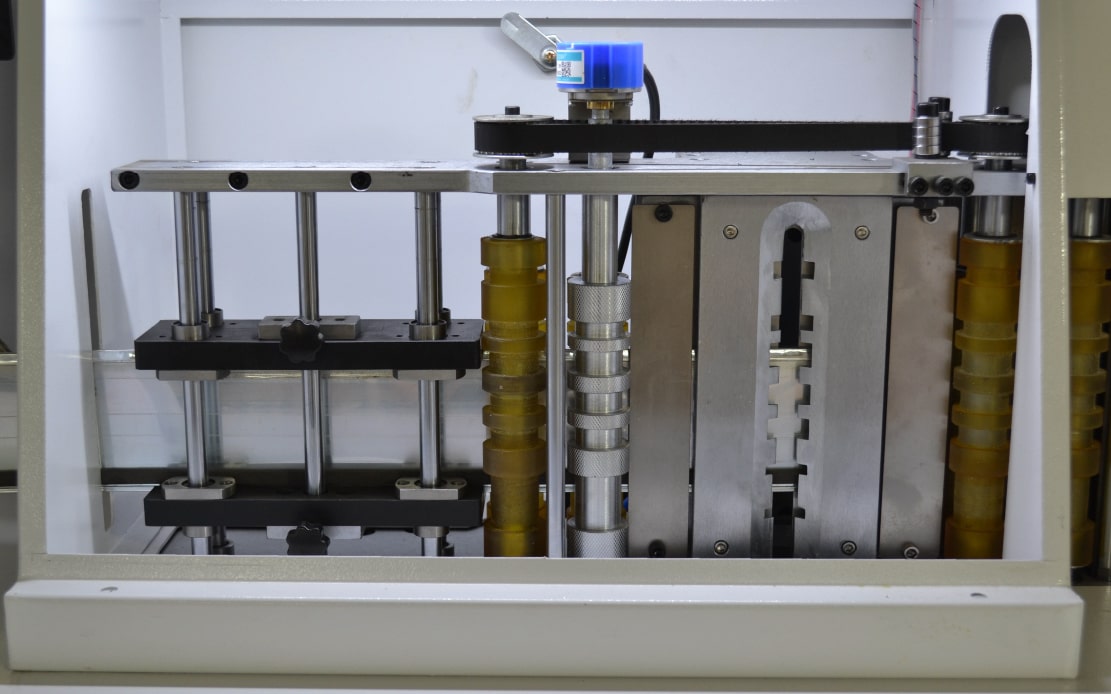

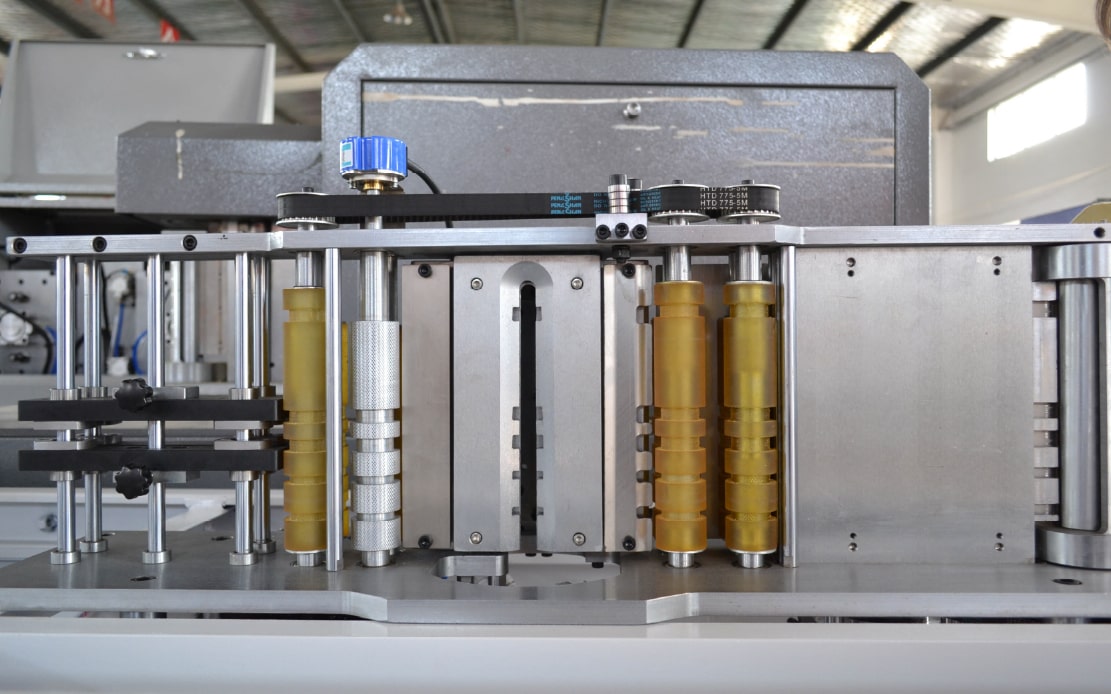

Notching
01. Aluminum cutting uses a 20mm Taiwan PDF guide rail, the knife is 75mm, guaranteeing smooth cutting with a fast rotating speed and a small cutting angle

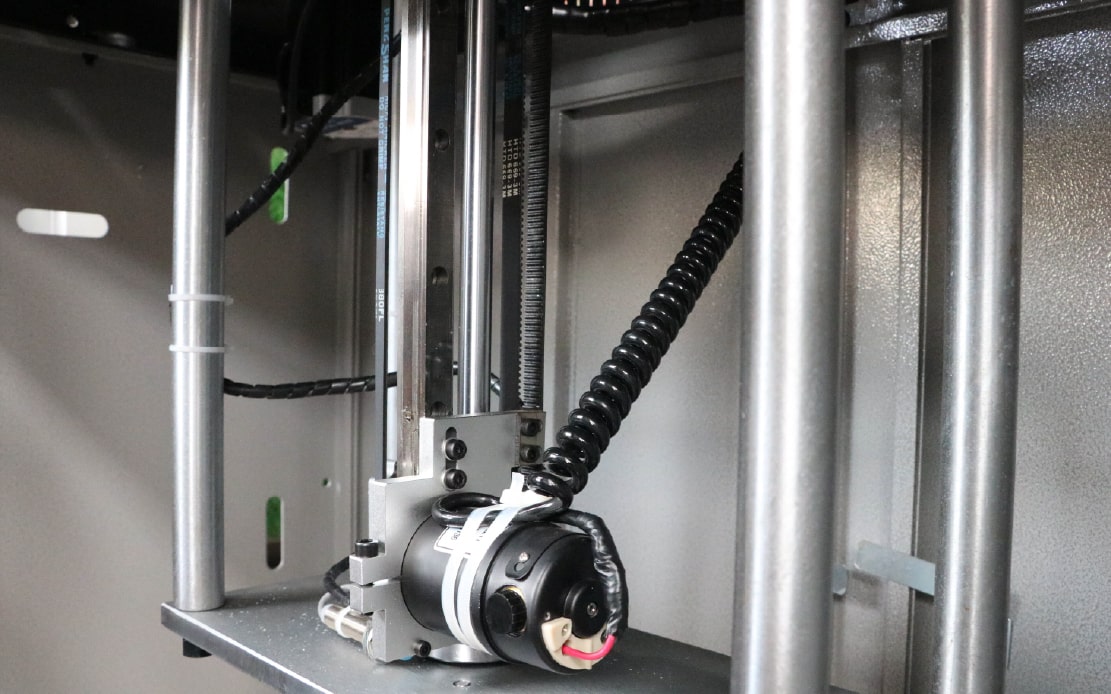

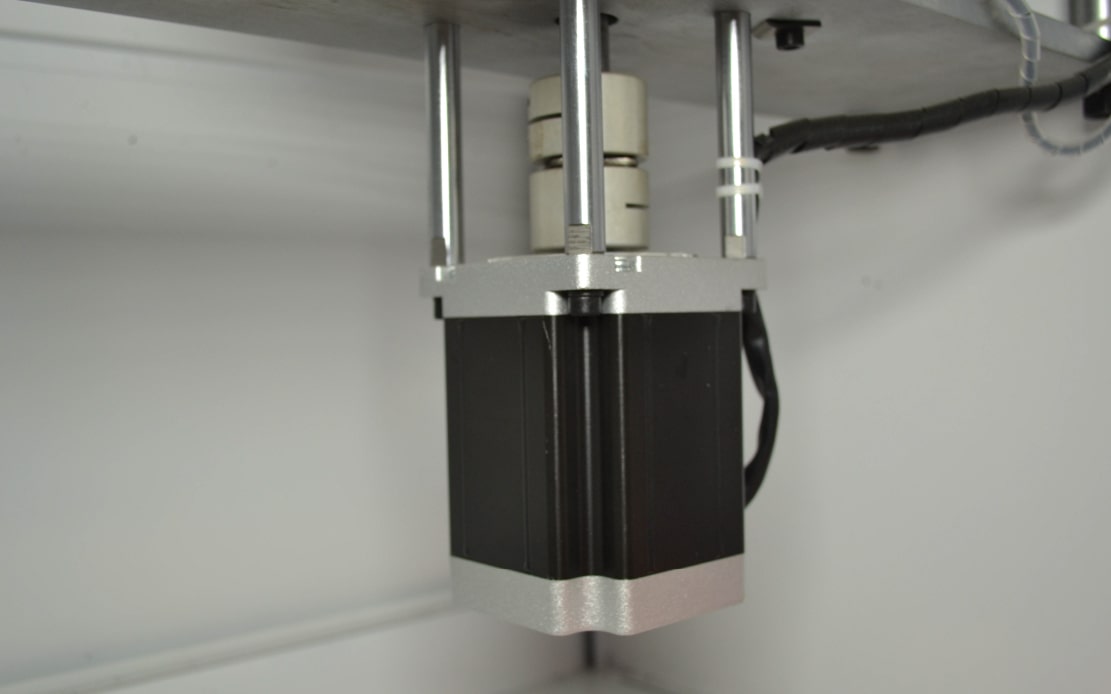

02. Cutting mode uses motor lifting control, more stable, less likely to damage material, and the noise is small
03. Use a four-column design to ensure the cutting is stable and effective

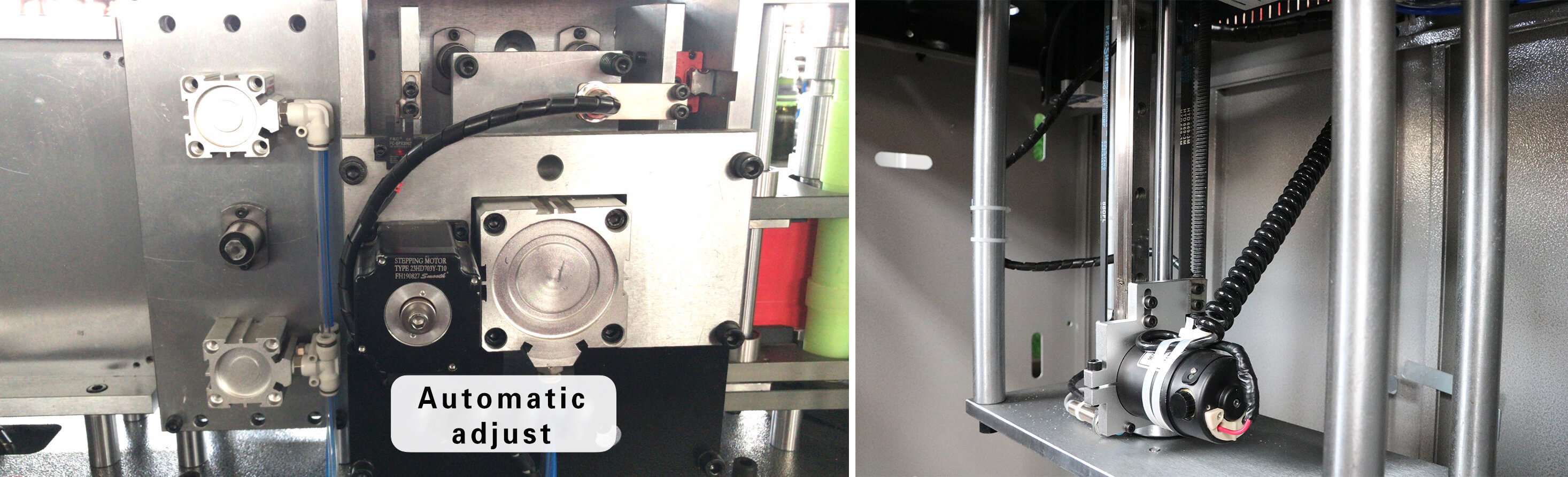

04. The notching depth is adjusted by software, adjustment easier and highly precise
Bending

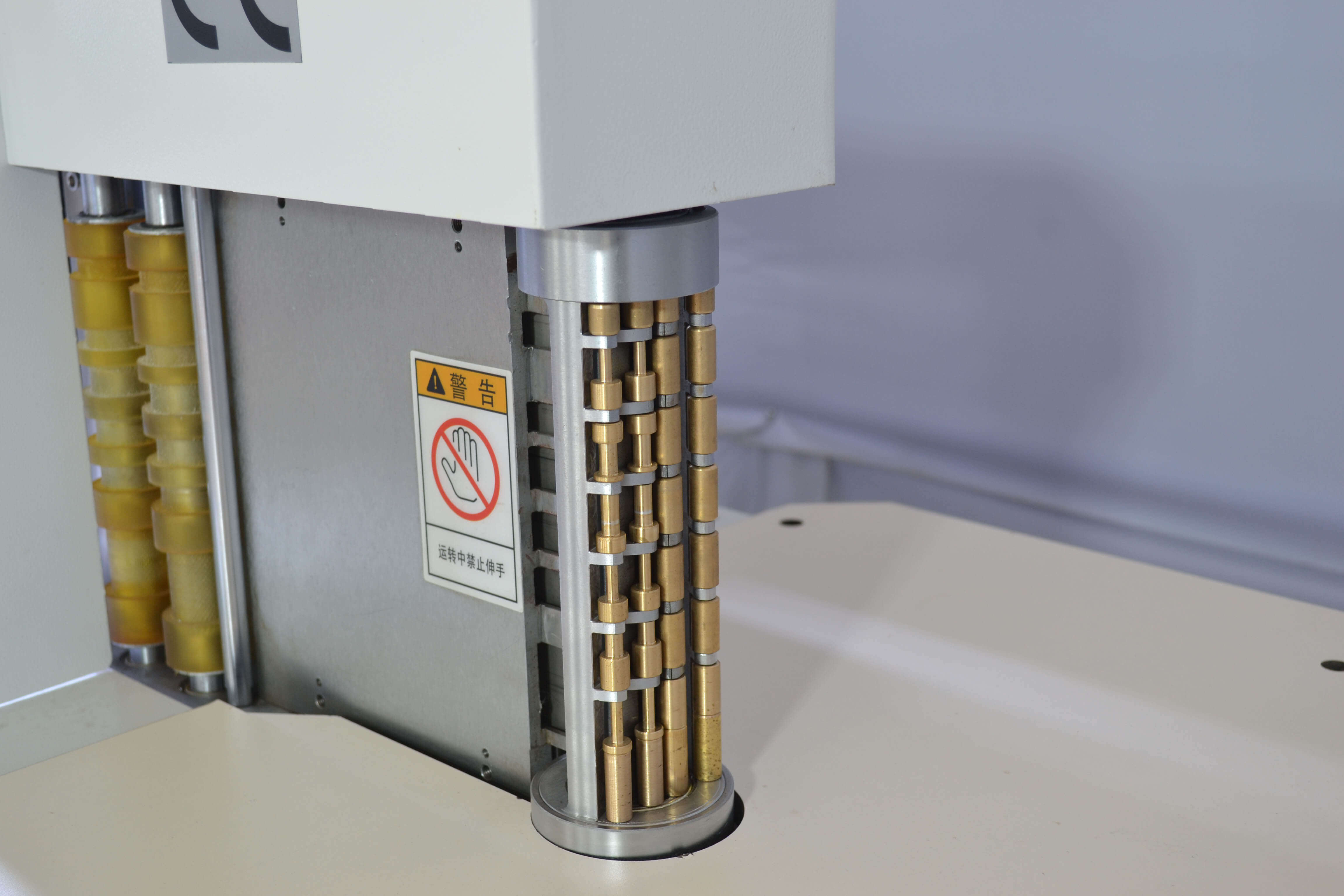

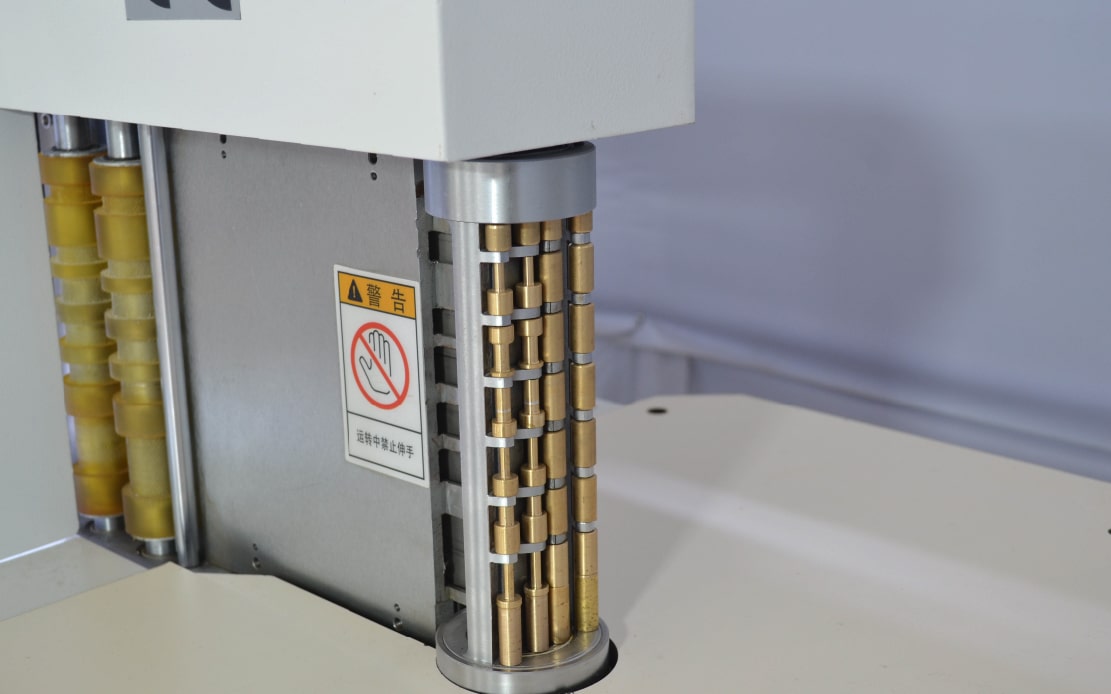

Use a double cooper shaft flat arc bending device, small radius bending and large radius extrusion molding, processing speed is fast, and doesn't damage the material, every day can finish 80-100 square meters of letters
Spare part
Name | Qty | Name | Qty |
Power cable | 1 piece | Relay | 1 piece |
Allen wrench | 1 sett | Photoelectric Sensors | 1 piece |
Control card | 1 set | U disk | 1 piece |
Dongle | 1 piece | Fuse | 4 pieces |
Signal cable | 1 pair | ||
Cable | 1 piece | ||
| Belt | 1 piece |
Optional parts

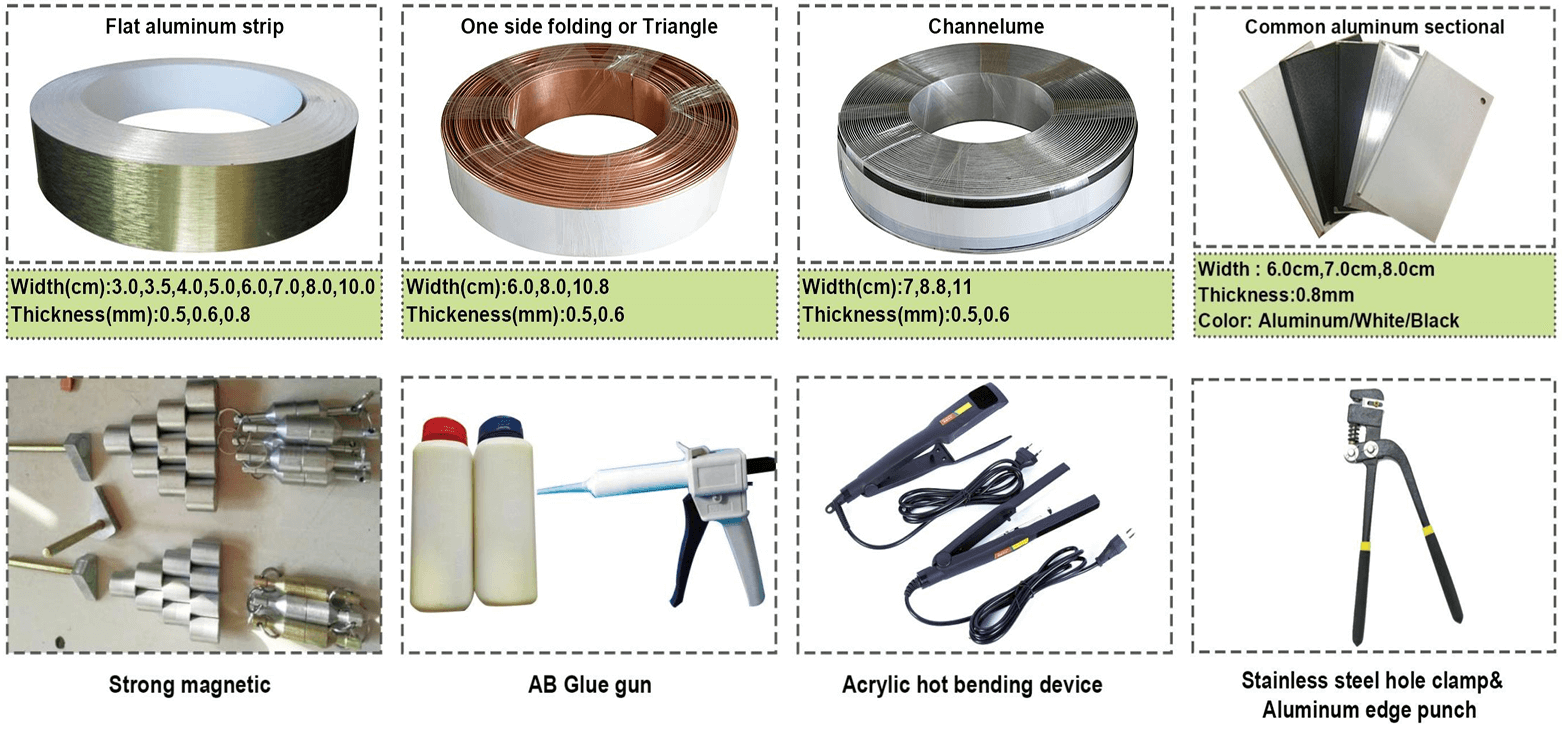

01. Aluminum profiles: We have different types and colors of aluminum profiles to choose from. When you need will give you a quotation sheet
02. Computer: When this machine is working, there is a control card that needs to be installed in a computer. For a control system no limit
03. Compressor: Need a 0.3-0.6MPa Air compressor working
