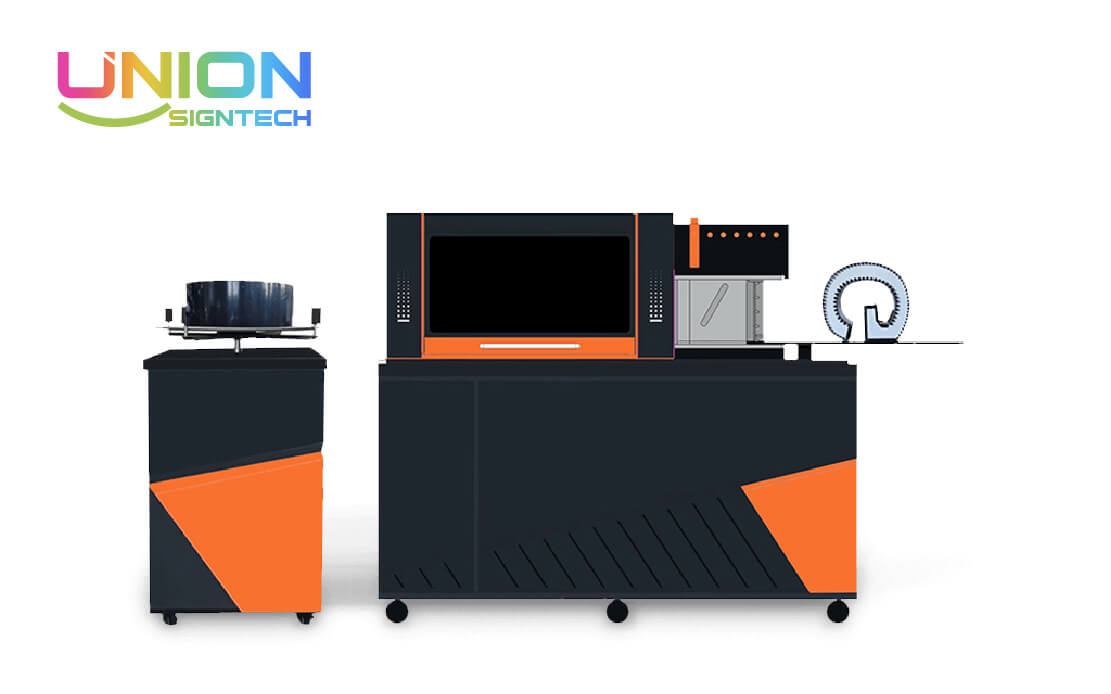

ULB-220V V Notch Flange Channel letter bending machine
Technical Data
| Model | ULB-220V |

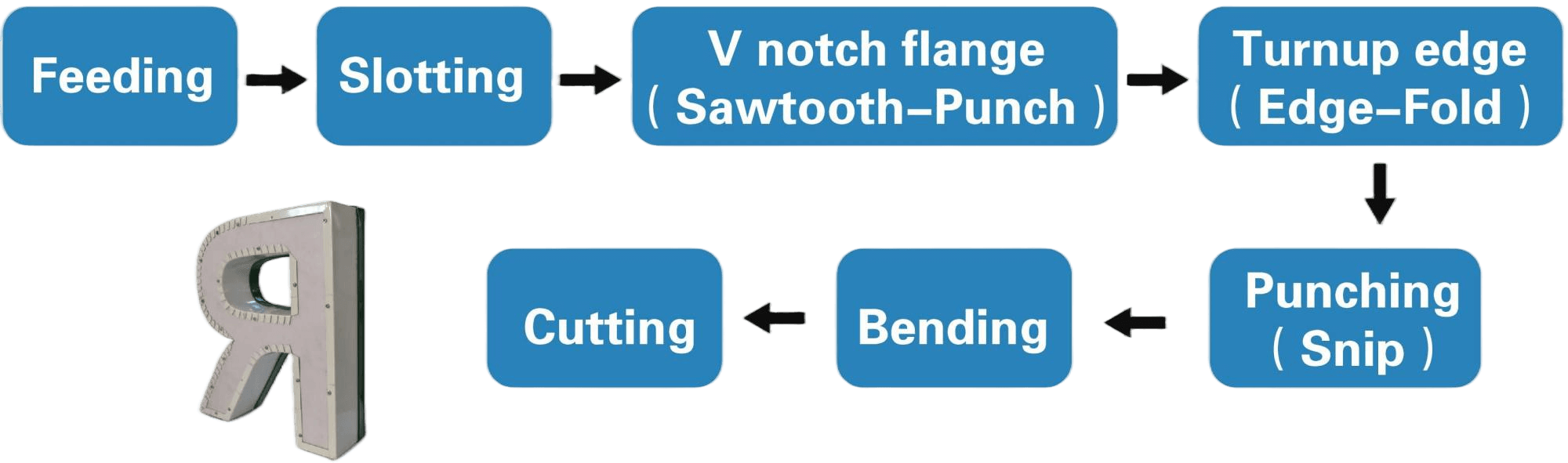

| Function | Feeding-Slotting-V notch flange(Sawtooth-Punch)-Turnup edge (Edge-Fold)-Punching(Snip)-Bending-Cutting |
| Applicable material | Stainless steel, Flat aluminum, Galvanized, Iron |
| Slotting and bending material thickness | Auminum:0.6-2mm(0.059″) Stainless steel:0.6-1.5mm(0.059″) |
| V-notch flange and turn-up edge use material and thickness | Flat aluminum:0.8-1.2mm(0.047″); Attention: stainless steel and Galvanized, Iron 0.4-0.8mm(0.031″) can use a VV-notch flange and a turn-up edge, but because this Kind of material is too hard, it is easy to damage the machine, so we don't suggest using it. |
| Slotting and bending material width | 20-220mm(8.66″) |
| The Min bending radius | R6 mm |
| Feeding method | Double manipulator+encoder |
| Process precision | ±0.1mm |
| Control system | Independently developed ADT 8-axis control system |
| Bending | Double pole bending device |

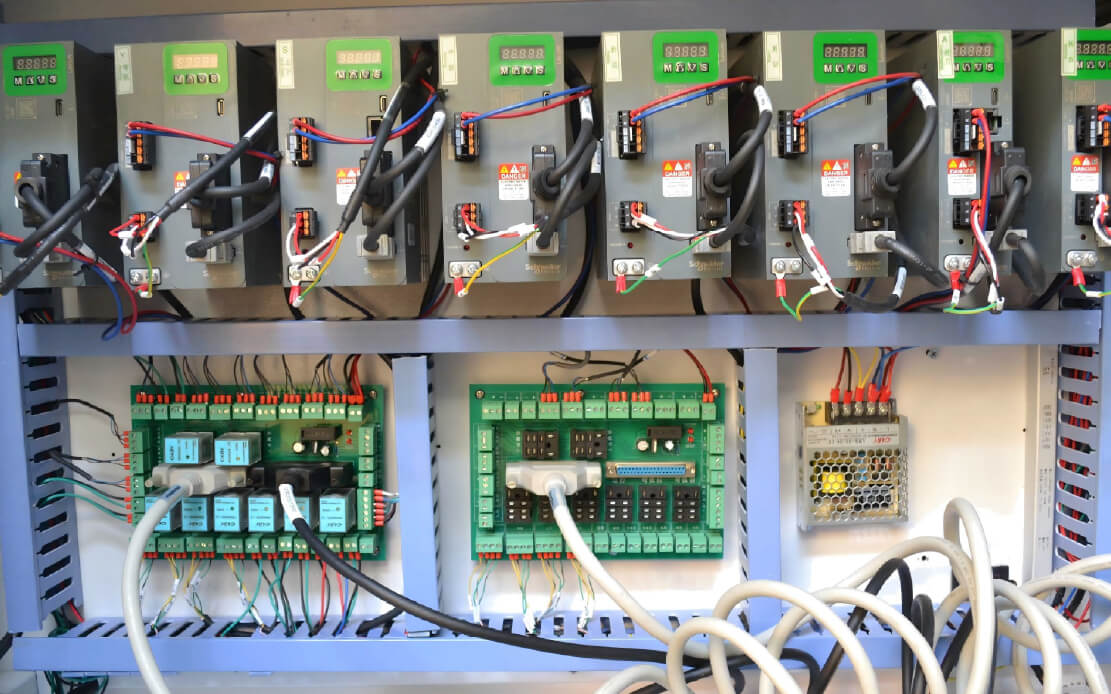

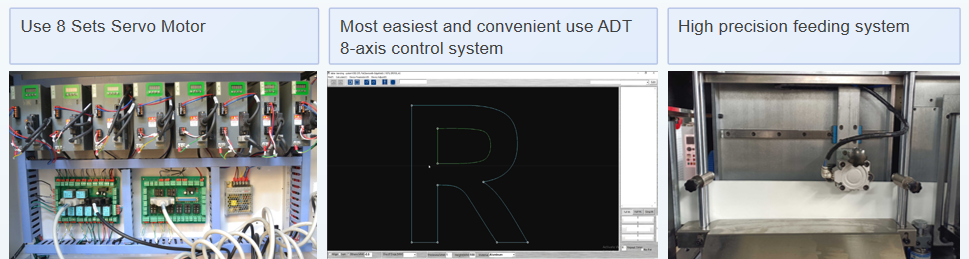

| Main motor | 8 sets Servo Motor |
| Total power | ≤5000W |
| Air pressor | 0.8Mpa |
| File format | dxf, Ai |
| Working voltage | 220V/50-60HZ/1P |
| Weight(kgs) | 750kg |
| Overall size(mm)(LW*Z) | 3400*1620*1350mm |
| Plywood package size(mm) | 2260*1000*1920mm+800*750*1300mm |
| Gross weight(kgs) | 900kg |

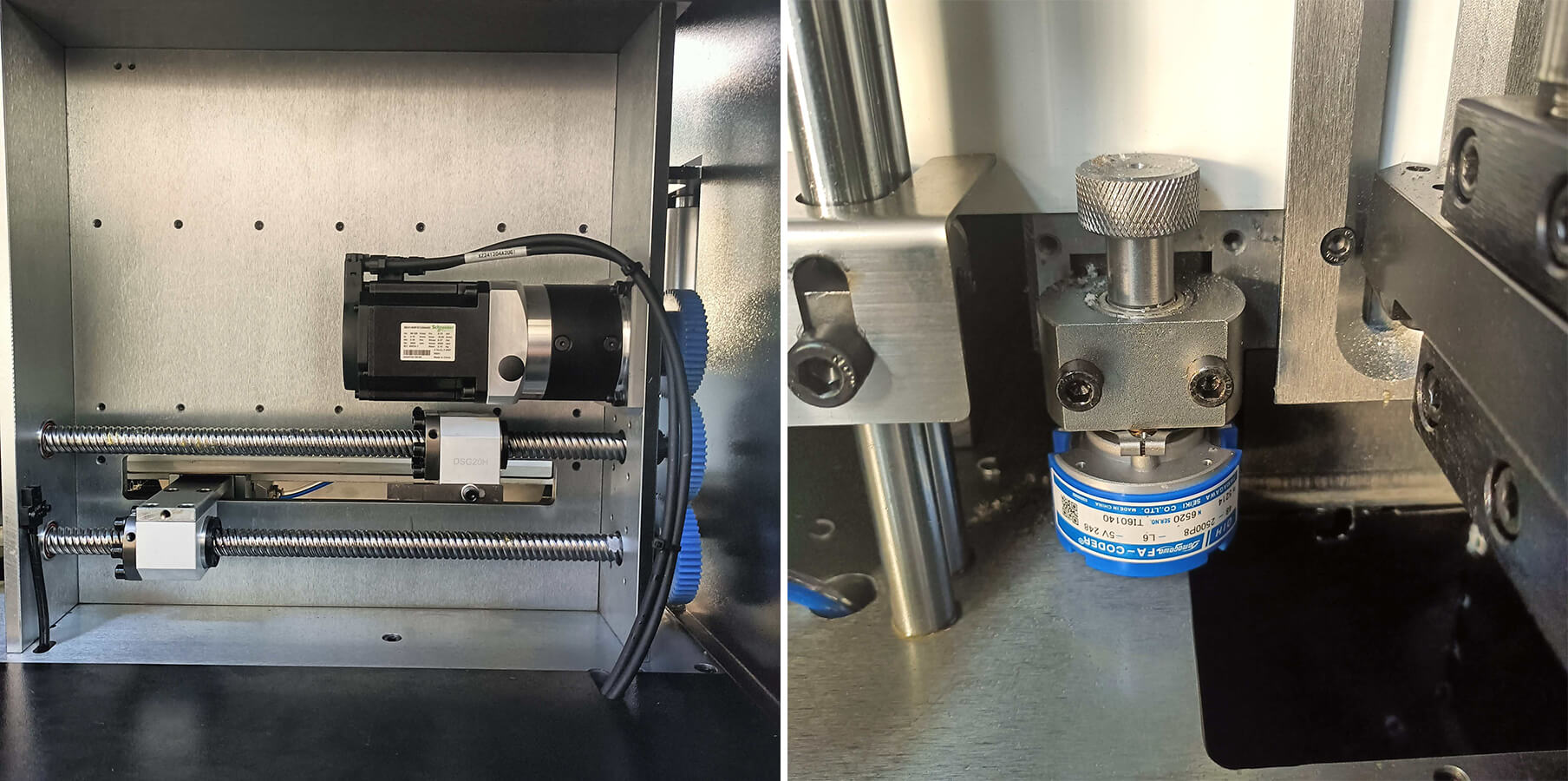

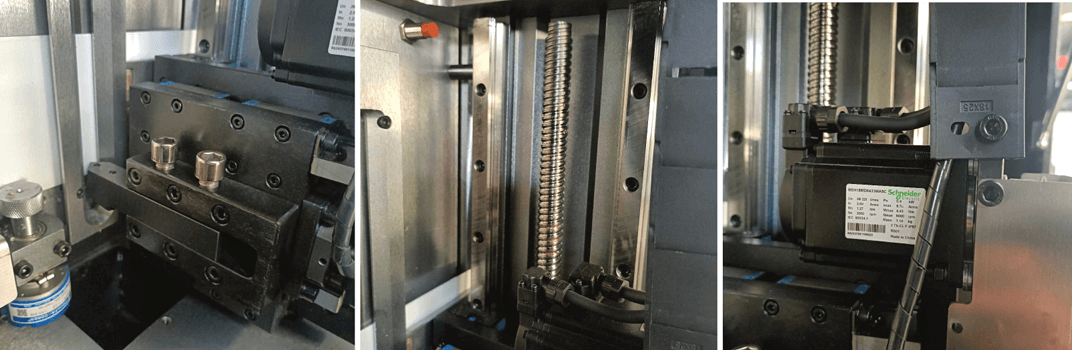

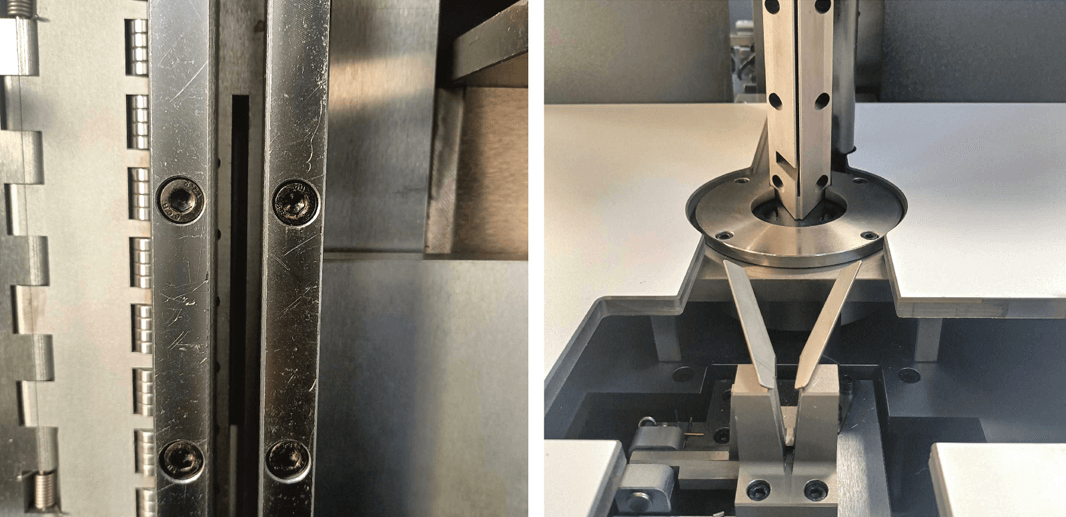

01. Double manipulator feeding, equipped with a high-precision lead screw and guide rail
02. Install the servo motor and encoder to ensure the accuracy and stability of feeding
Precision slotting system

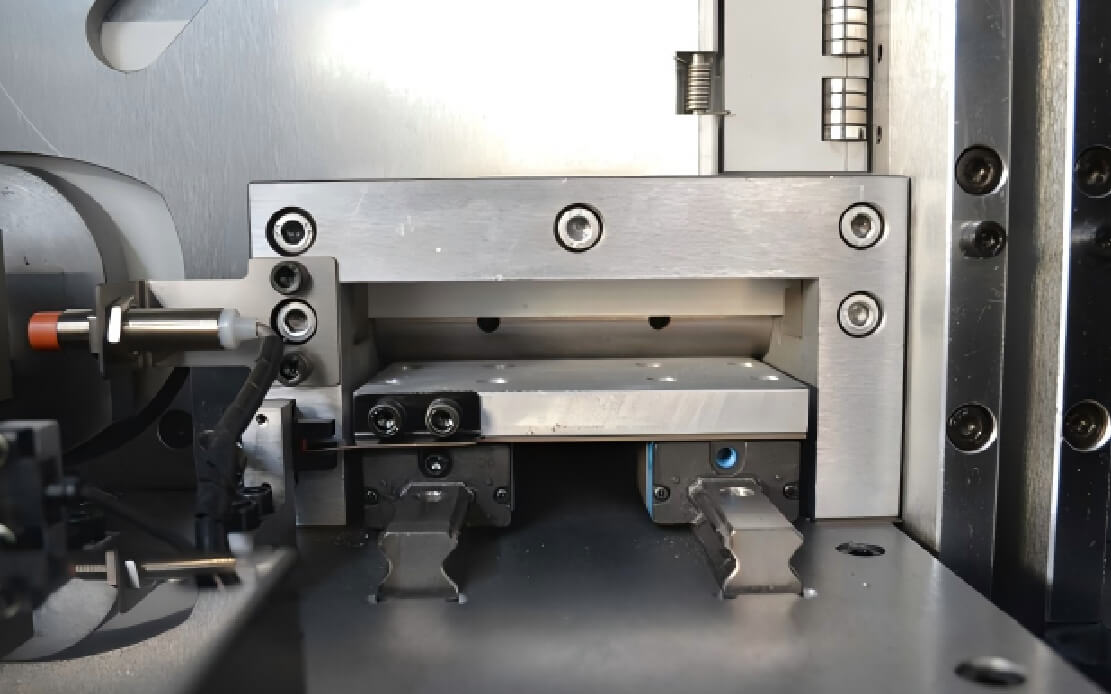

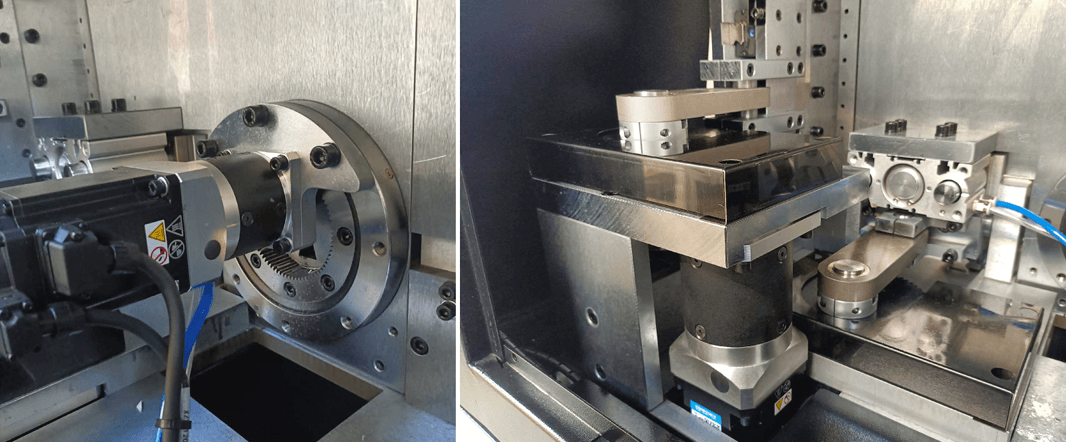

Near the guide rail and ball screw, a servo motor, precise control of the slot position. automatic adjustment of slot depth

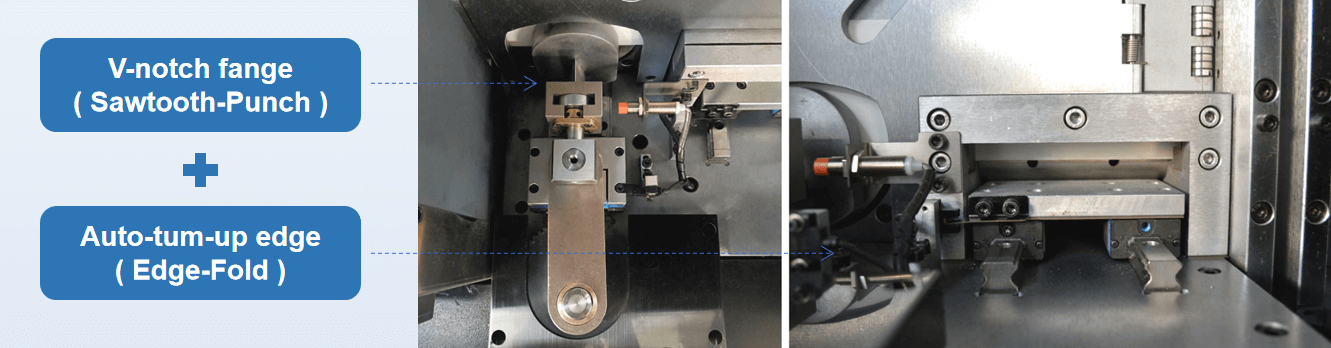

High precision servo motor controlV-type slot (Sawtooth-Punch). Automatically recognize the turn-up edge(Edge-Fold)according to the font, and use circular axis bending to protect the surface of the material

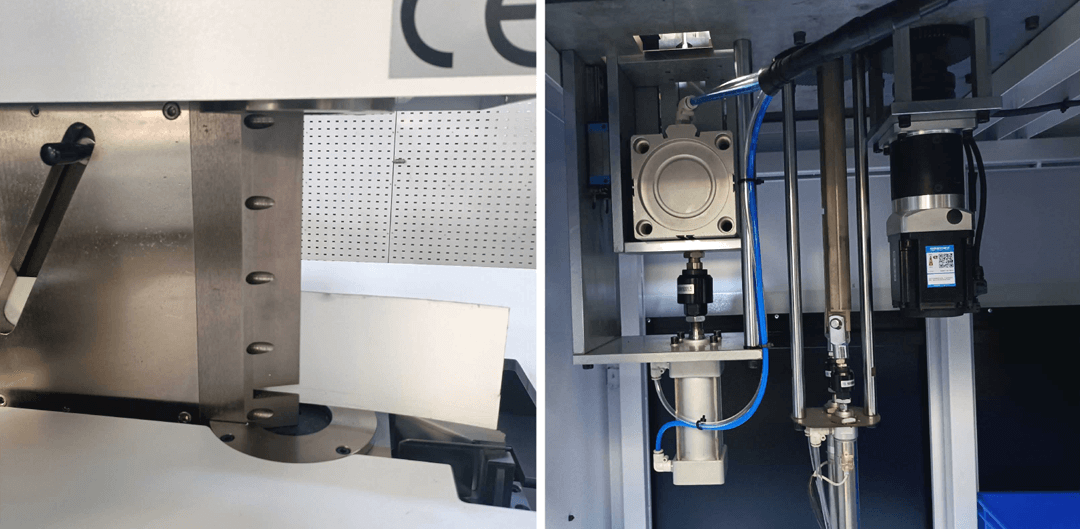

Servo control punching, precise positioning, pneumatic control cutting, powerful powerAttention: V-notch flange and auto turn-up edge, punching and cutting, all can be closed. The machine changes to flat material mode
Bending system

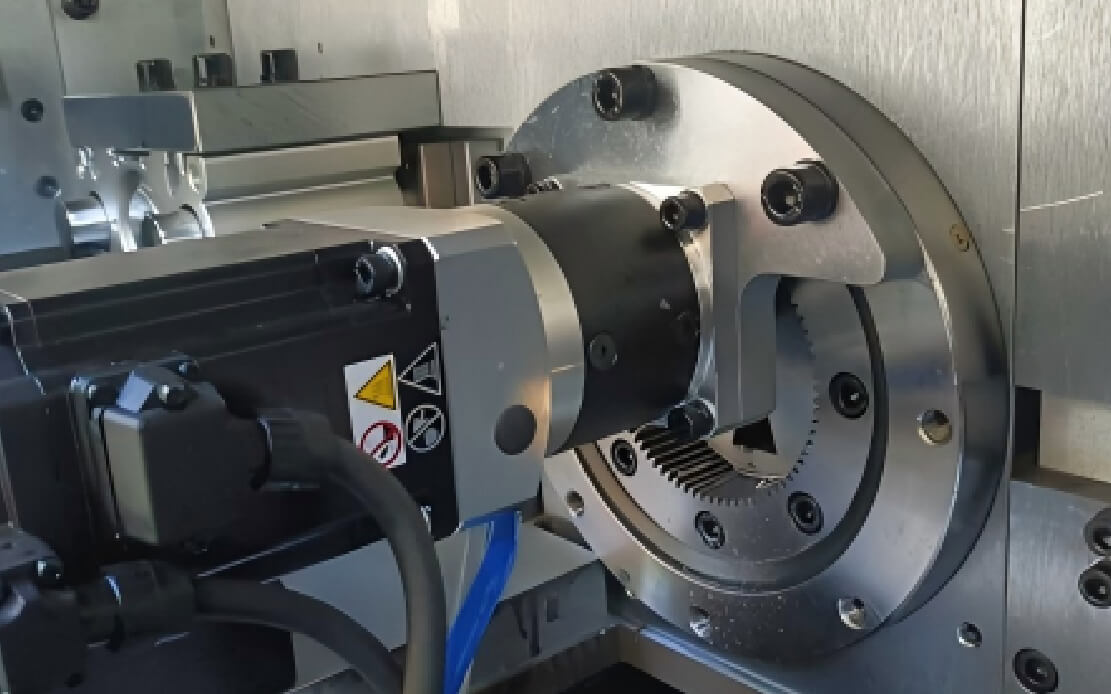

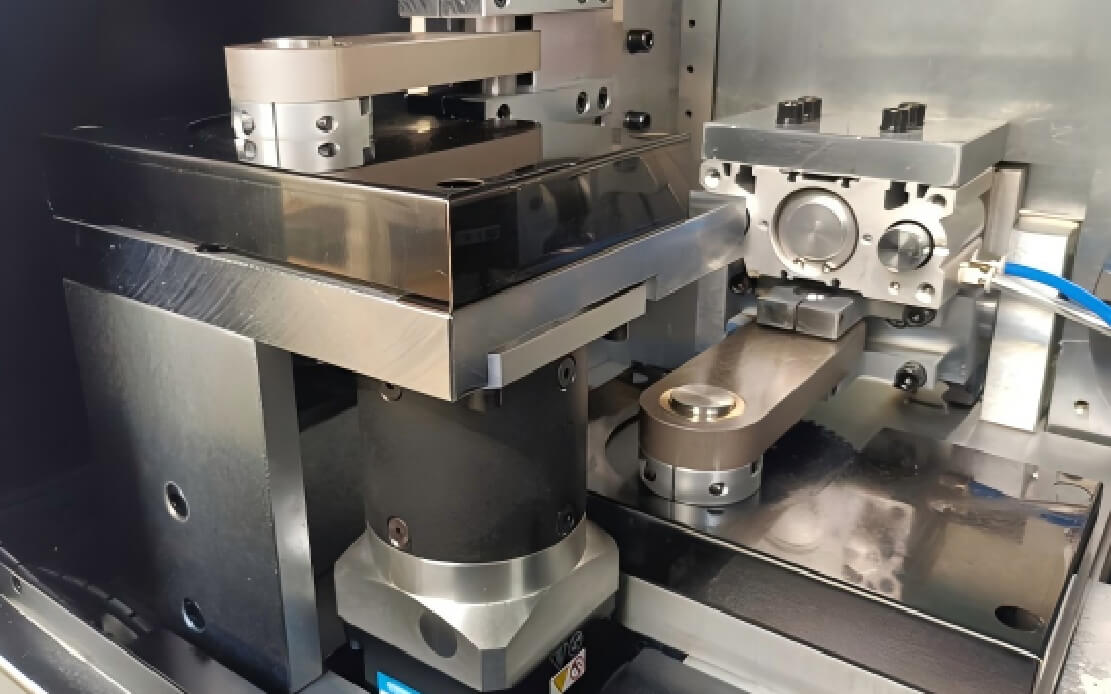

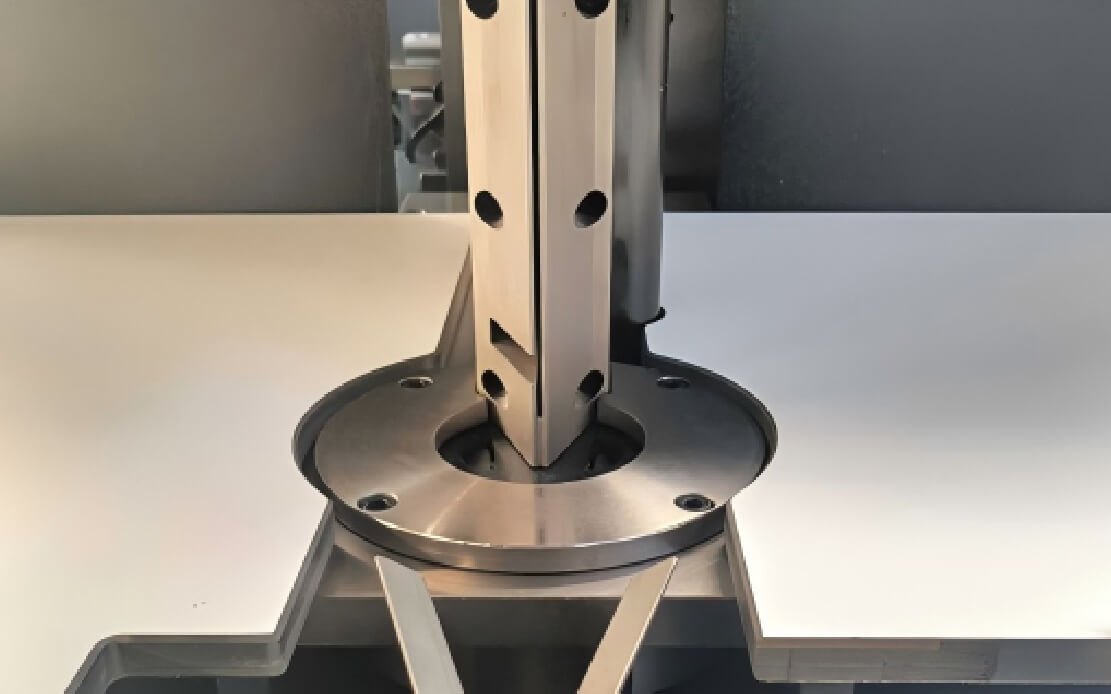

Equipped with a double-pole alternating bending structure and a high-power servo motor to support high-speed bending, avoid bending structure deformation, and effectively improve bending positioning accuracy and speed

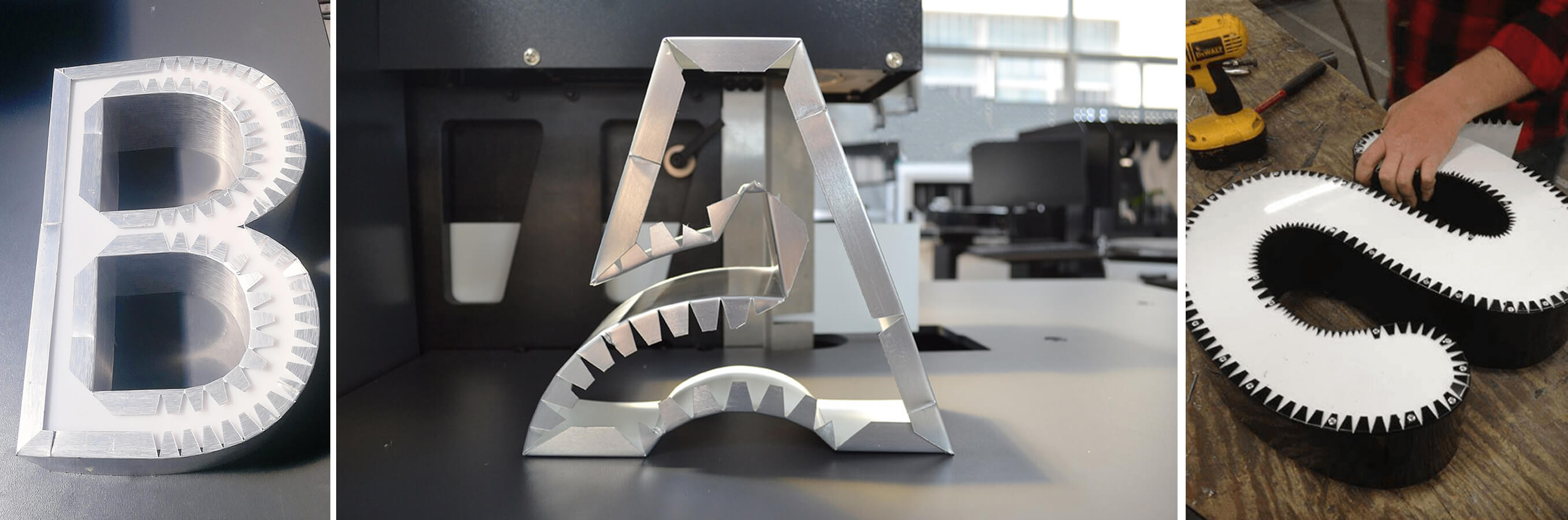

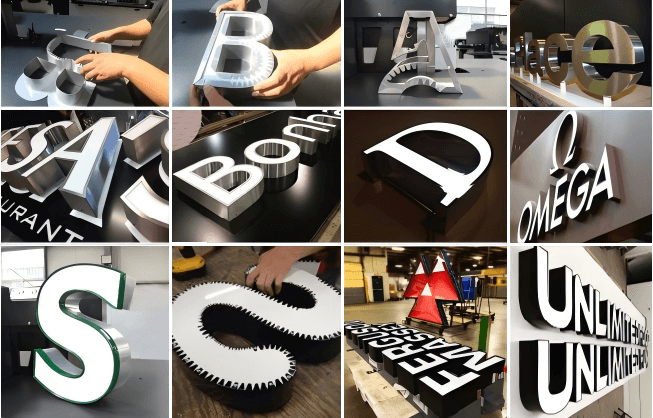

Sample letters Show
