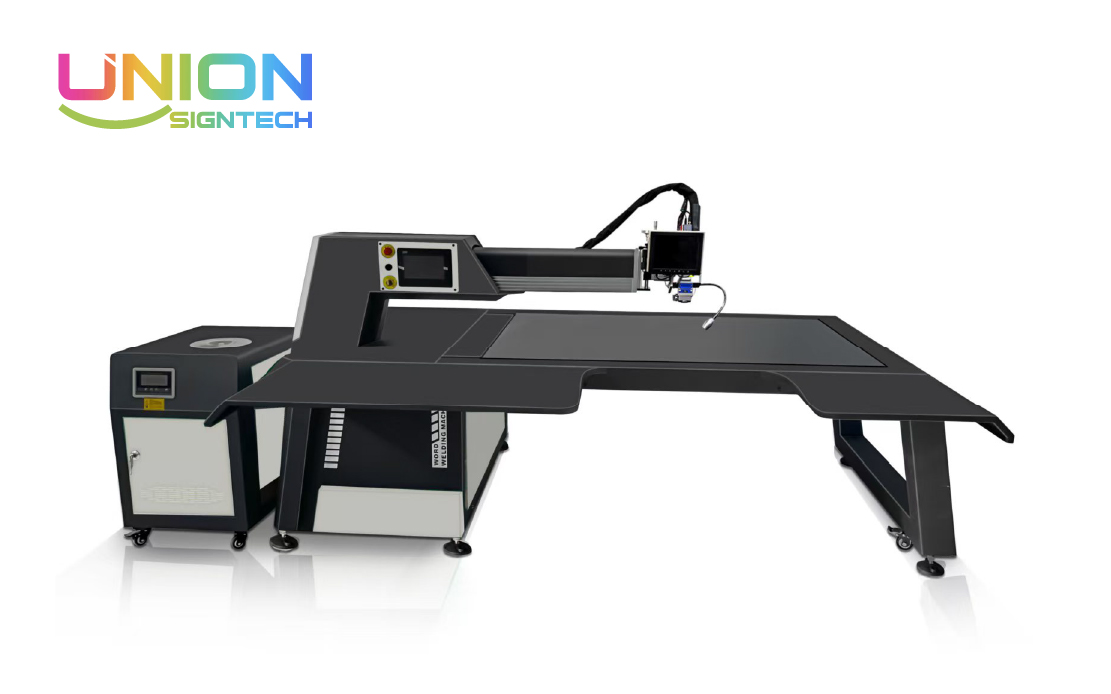

1500W Fiber Laser Welder for Aluminum Stainless Steel Letters
Introduction

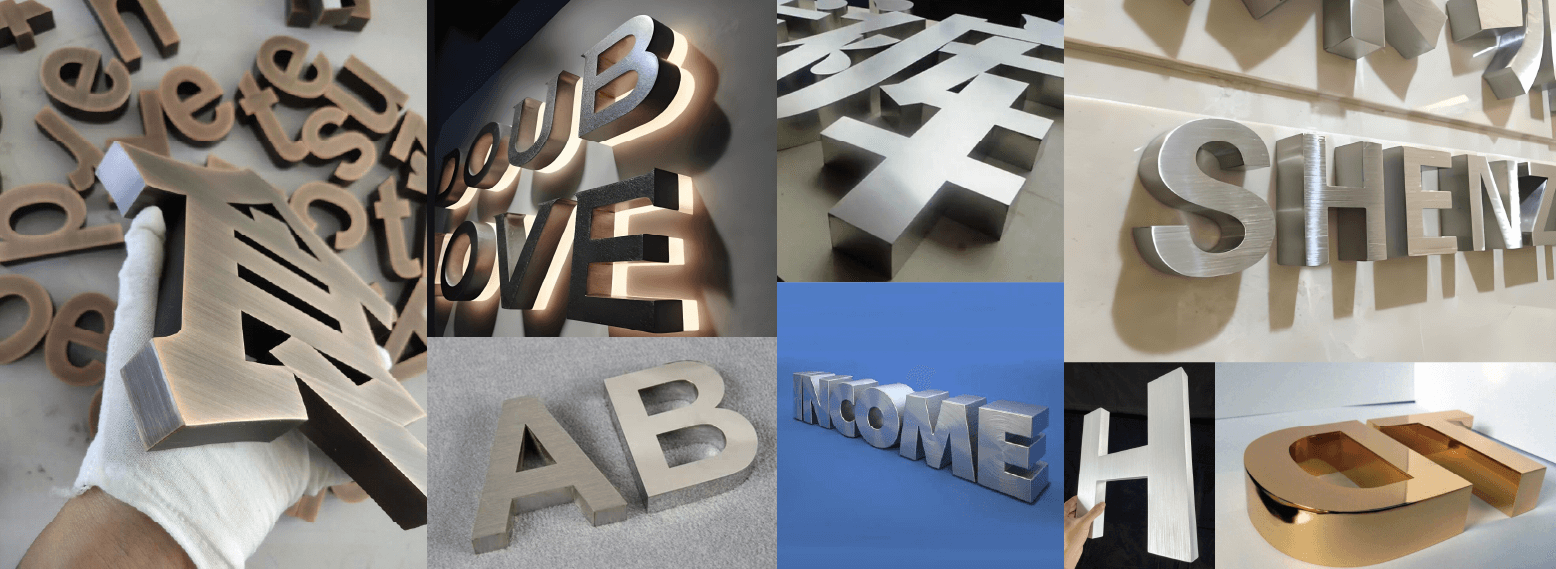

The new 1500W aluminum letter laser welding machine is a new type of laser welding machine developed by our company to meet market demand, thus solving the problem of welding aluminum materials for advertising metal letters, making welding aluminum letters easier and more environmentally friendly. It can also weld galvanized sheets, stainless steel, and other metals
Welding Material
Aluminum plates, aluminum profiles, galvanized plates, iron plates, stainless steel, titanium plates, and other metals
Technical Data
| Model | UWM-L(1500W Aluminum letter welding) |
| Maximum laser power | 1500W |
| Laser wavelength | 1070nm |
| Laser type | continuous |
| Weldable penetration： Aluminum | 0.1-3mm(0.11″) |
| Weldable penetration: Iron plate | 1-4mm(0.15″) |
| Weldable penetration: stainless steel | 0.6-4mm(0.15″) |
| Pulse width | 1-50MS |
| Laser welding frequency during continuous attack | 1-100Hz |
| Spot Mode | Triangle, circle, etc.9kind |
| Peak power consumption of the whole machine | ≤6KW |
| Power demand | 220V±10%/50/60Hz |
| Host size | 2.5*1.2（1.7After the pallet is installed)*1.21 |
| Aiming and positioning | CCDSynchronous HD video+Red light |
| Laser up and down travel | ≥200mm |
| Packing size(mm) | 1700*1300*1400mm |
| Gross weight (kgs) | 260 |
Advantage
01. Long warranty: For the main parts, the fiber laser comes with a two-year warranty
02. Easier operation: Same as other fiber laser welding machines, no need for professional welding experience, only need simple training, then you can use this machine to get a good welding effect

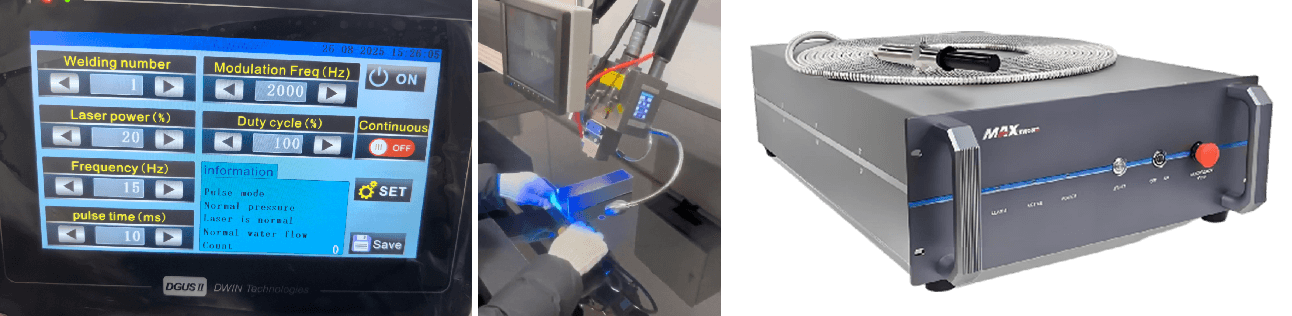

03. The power supply of the machine adopts a genuine original MAX laser, which has stable quality and sufficient power. It does not have the optical path design of traditional welding machines. It basically has no consumables and no after-sales service. The theoretical life of the laser can reach 100 thousand hours

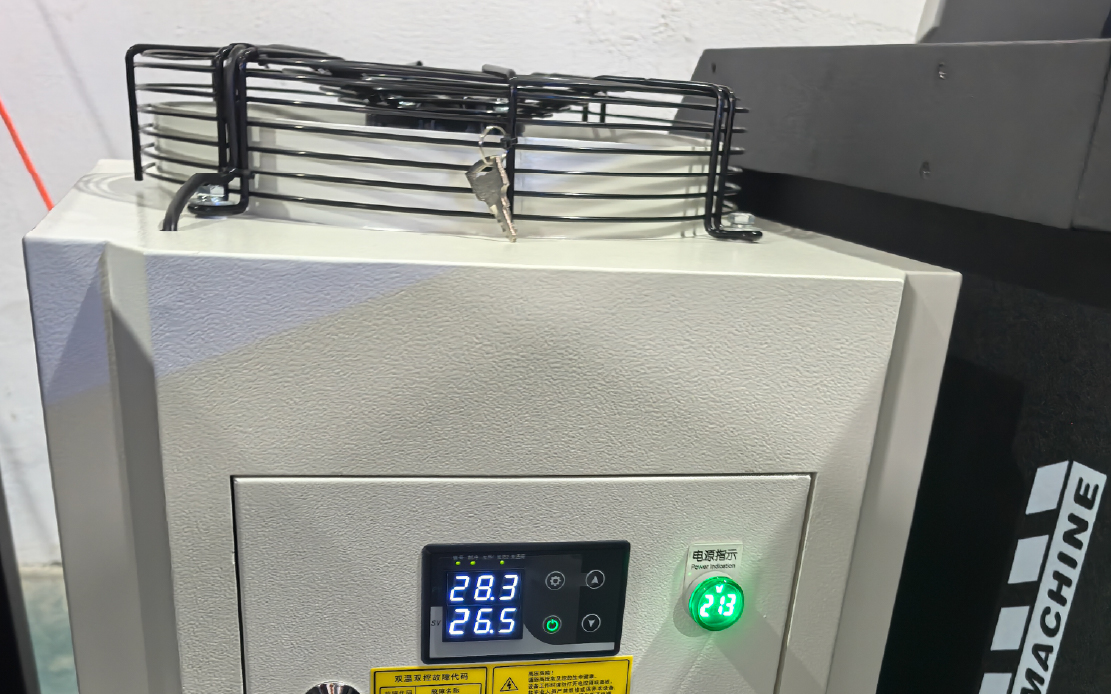

04. The chiller adopts a customized special chiller with a large cooling capacity, which can ensure the machine can work for a long time

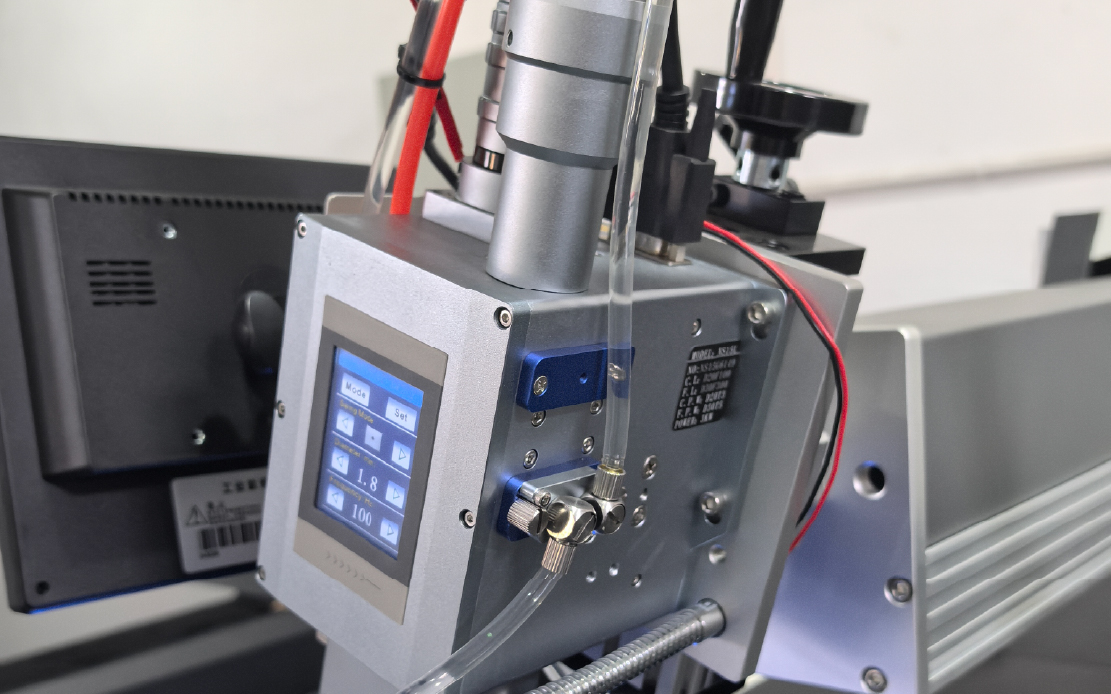

05. The welding head adopts a double-swing special welding head, and the spot mode size can be adjusted, making welding easier and the weld more beautiful

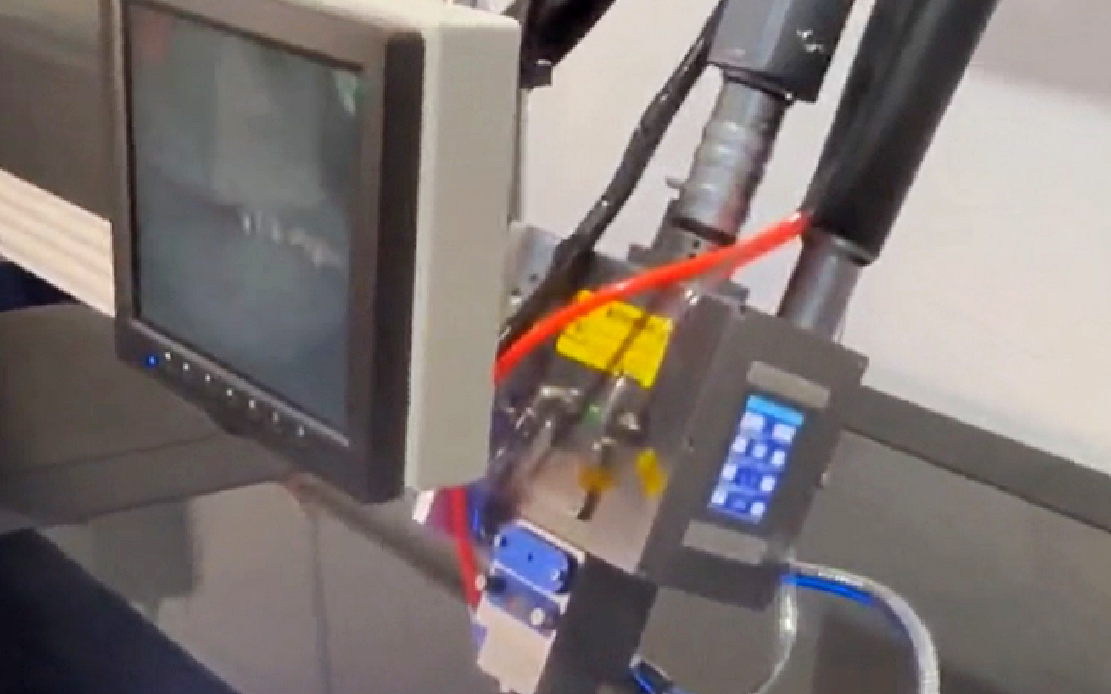

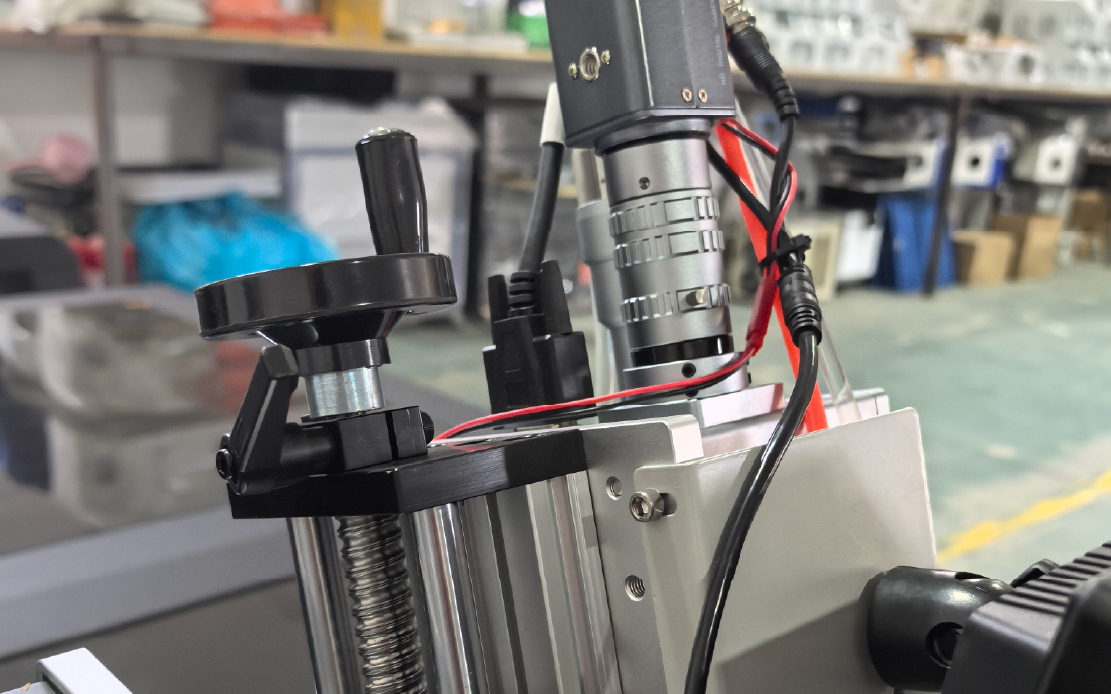

06. The machine is equipped with a standard CCD camera system, 10x magnification + crosshair positioning + red light positioning, which is more user-friendly
