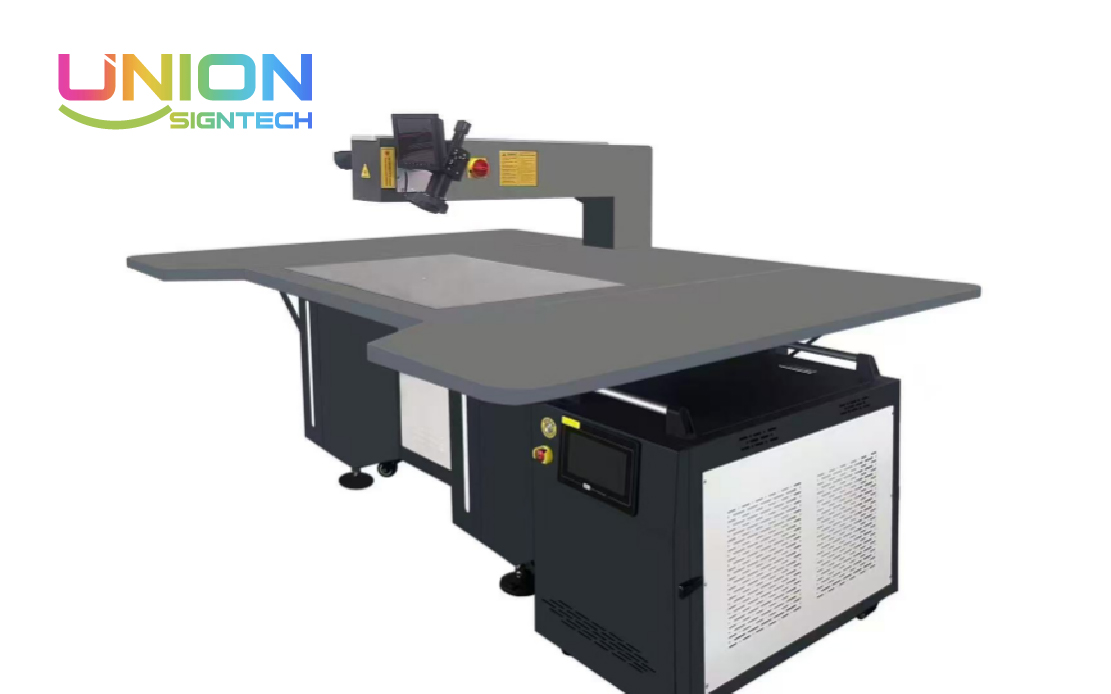

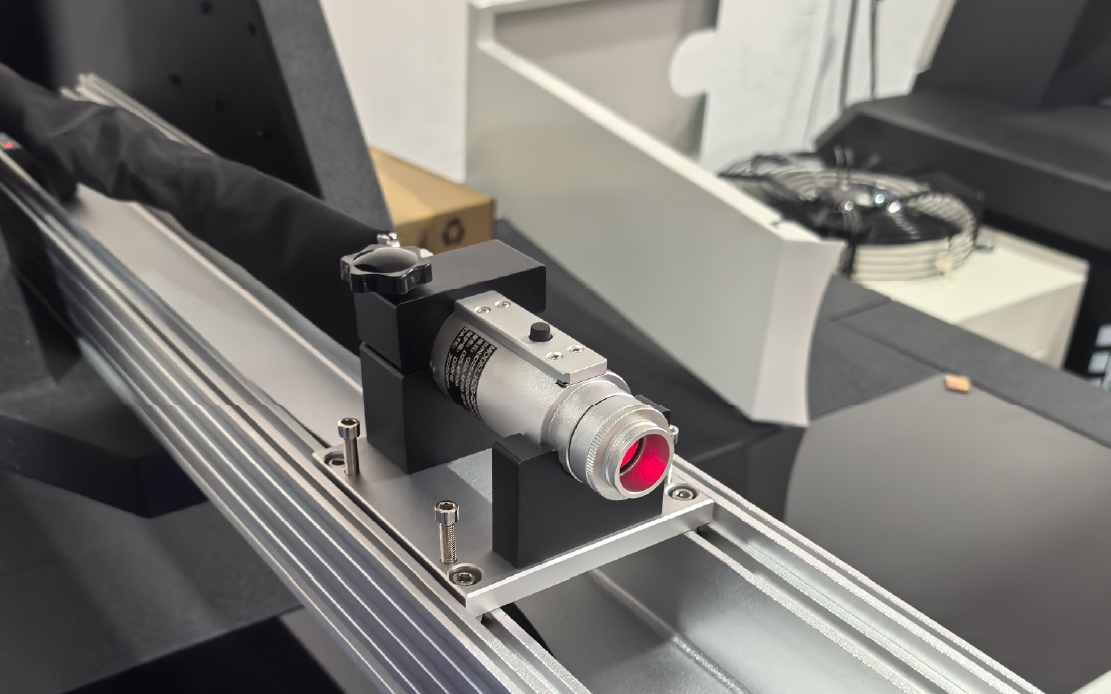

UWM-Q 750W Pulse Laser Welder with Low Cost & Long Service Life
High-quality precision welding equipment with no light decay, maintenance-free, zero installation post-sale, and low power consumption
Induction
The new 750W pulsed laser welding machine has the advantages such as fast welding speed, high welding quality, a small heat-affected zone, and precise control. Therefore, it has a wide range of applications in various fields. The following are some of the main applications
scenarios
Advertising and signage industry, automotive manufacturing, electronics and electrical industry, aerospace, biomedical field, jewelry industry, machinery manufacturing industry, hardware, and building materials industry

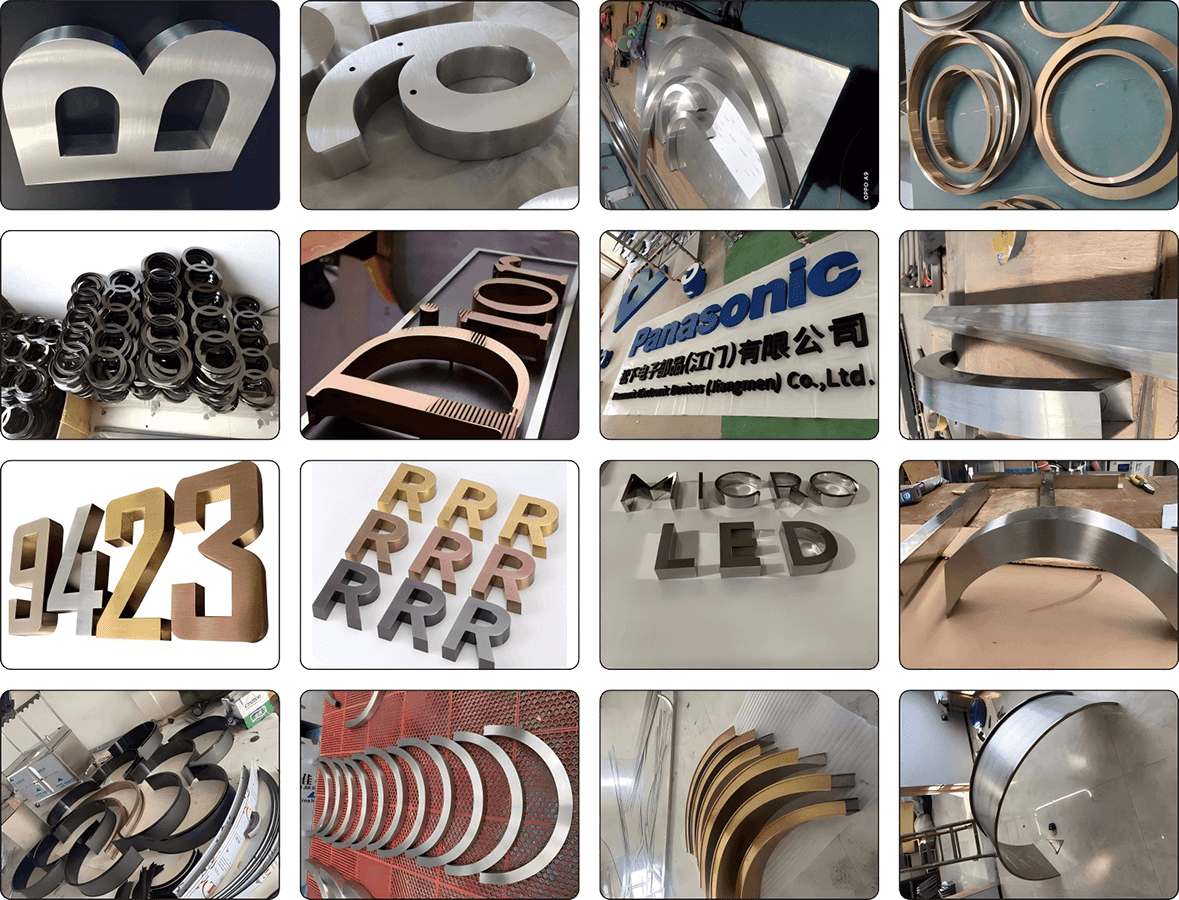

Sample letters Show

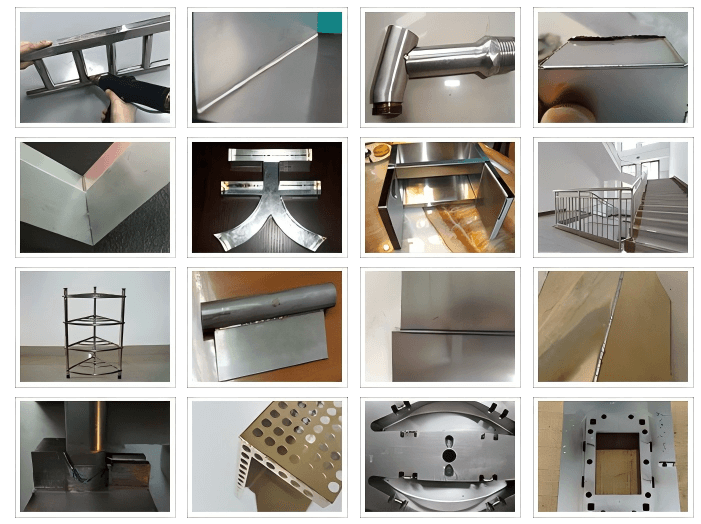

If only hand welding could finish the welding parts showing
Welding Material
Stainless steel, galvanized sheet (iron sheet), iron plate, titanium, and other metals(no aluminum)
Technical data
Aluminum plates, aluminum profiles, galvanized plates, iron plates, stainless steel, titanium plates, and other metals
| Model | UWM-Q(750W) |
| Laser power | 750W |
| Laser wavelength | 1080nm |
| Monopulse Max power | 30J |
| Laser-weldable penetration | Stainless steel:0.2-3mm(0.11″);Iron plate:0.2-4mm(0.15″) |
| Pulse width | 0.2-50ms |
| Laser welding frequency | 1-1000Hz |
| Whole power consumption | 2Kw |
| Power need | 220V±10% |
| Standard configuration working table | Wings spread：2.0*1.6*1.19m |
| Wing folding：0.96*1.6*1.19m | |

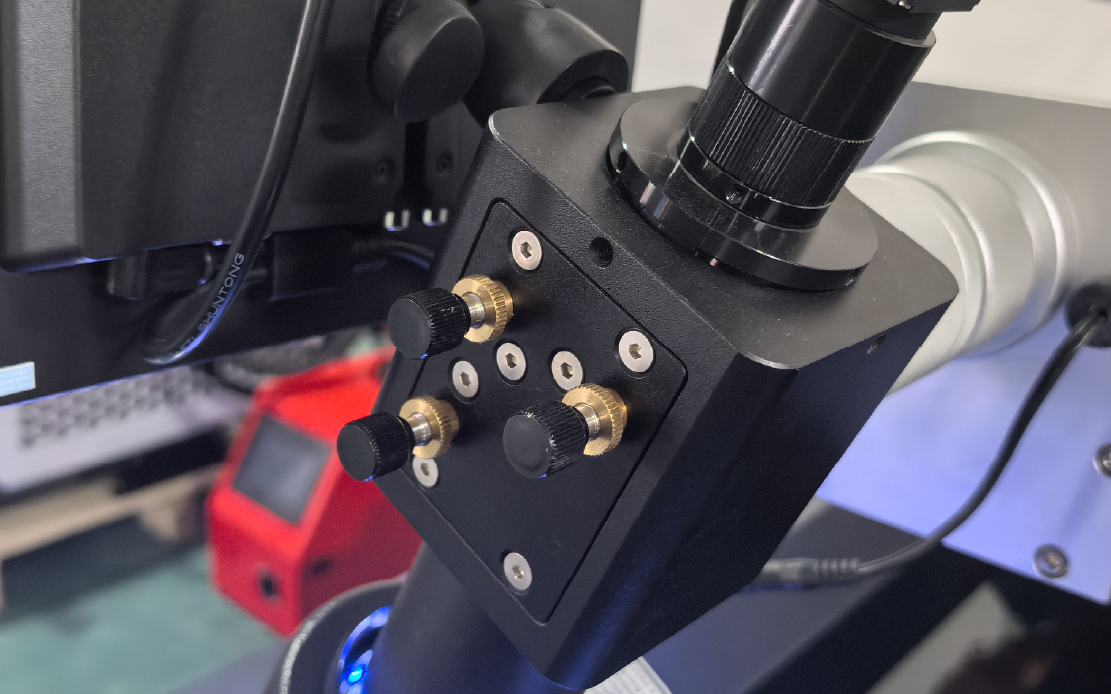

| Sight positioning | CCD synchronous high-definition camera + red light |
| Device vertical travel | ≈200mm |
| Length of optical cable | 5-8m |
| Packing size(mm) | 1700*1150mm*1400mm |
| Gross weight (kgs) | 300 |
Advantage
01. Compared to traditional YAG pulsed laser welding machines (YAG laser welding), the new QCW pulsed laser welding machine offers high electro-optical conversion efficiency and low energy consumption (the photoelectric conversion rate reaches 30%-38%, while the photoelectric conversion rate of YAG laser welding is only 3%-5%, and the energy consumption is only 1/10 of that of YAG laser welding at the same laser power). It also boasts a compact structure, requires no adjustment or maintenance, and features a flexible fiber optic output. It is an ideal light source for industrial laser welding and other applications
02. Its all-new design features a foldable double-wing design, providing a flexible footprint
03. Its all-new design features a foldable double-wing design, providing a flexible footprint
04. The machine's operation is simple and easy to learn and use. It requires minimal professional expertise, saving labor costs
05. The extremely low heat input during welding results in minimal post-weld deformation, resulting in a highly aesthetic weld surface. Therefore, laser welding requires minimal post-processing, significantly reducing or eliminating the labor-intensive polishing and leveling processes
Save electricity and use costs
The power is only 1KW/hour! Compared to YAG laser welding machines, performance is improved by 150%, and energy consumption is reduced by over 800%! Compared to YAG welding, electricity costs can be saved by nearly 3000-4000US$/ year
Zero Consumables

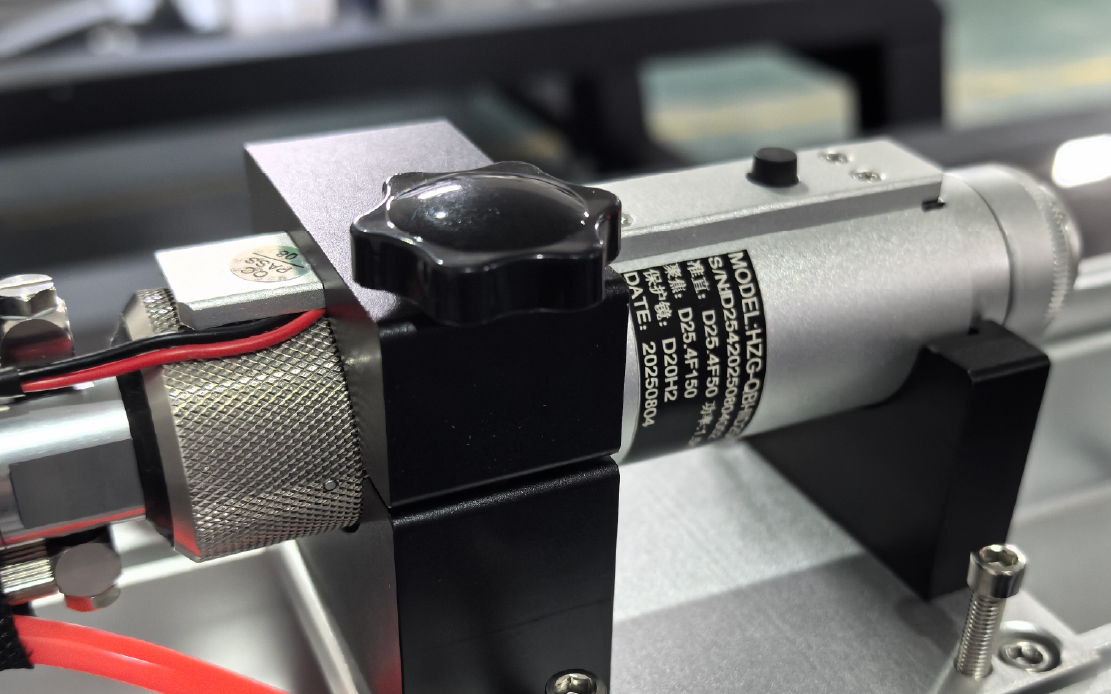

Adopting a pump-source optical path design, the optical path contains no other optical components (no cavity, no crystal, no xenon lamp, no fully reflective or semi-reflective lenses), significantly reducing after-sales costs
Maintenance-free
The light source uses a fully encapsulated laser design, eliminating the need for optical path angle adjustment, and very easy transport, and no need light dimmer
One machine, two uses (indoor or outdoor work)

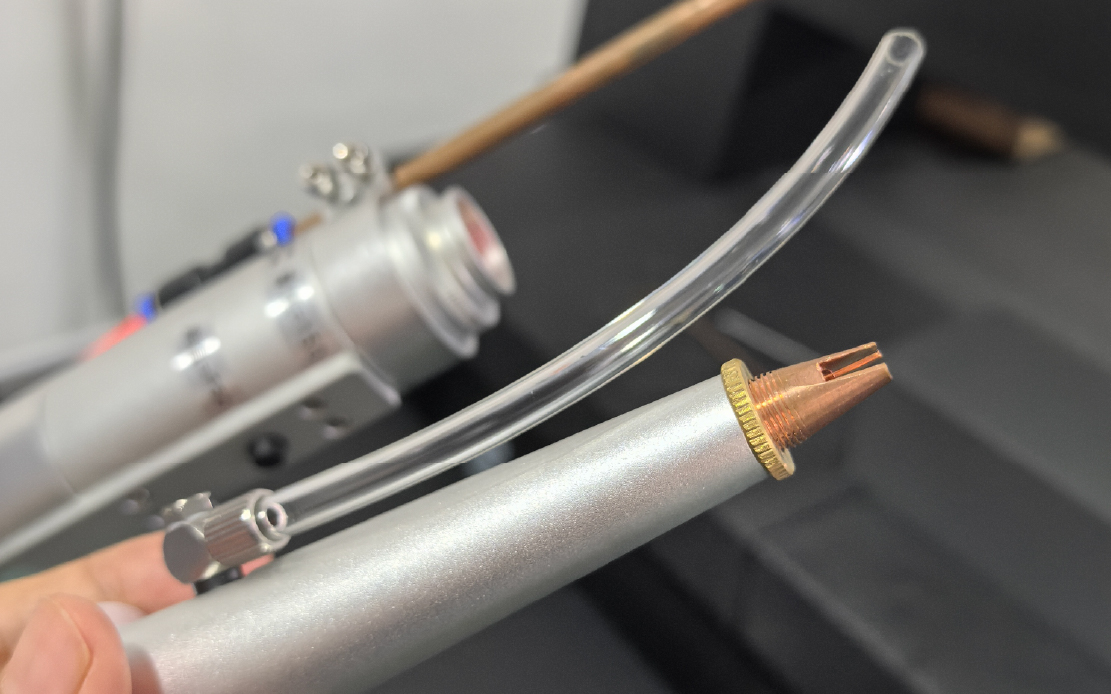

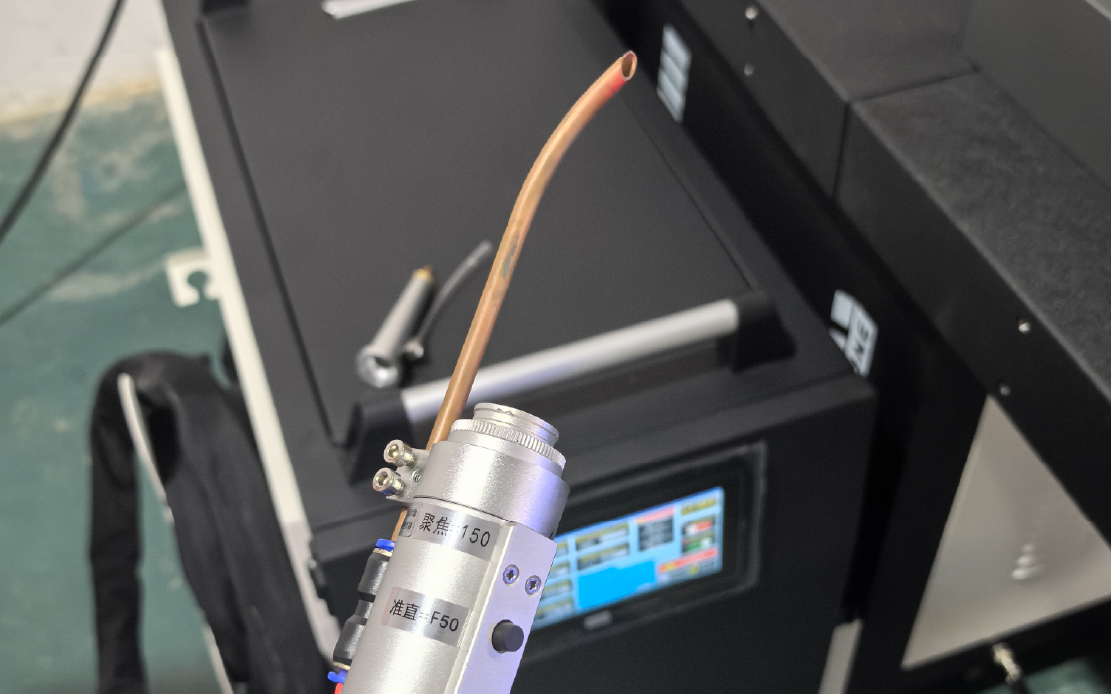

New platform + handheld design for easy assembly and disassembly. The platform comes standard with a CCD screen, and the handheld welding chassis can be dragged independently for greater convenience (handheld cable is 8m long)
Ultra-fast speed
Light emission frequency is three times that of YAG, resulting in higher efficiency
Process Advantages
01. Small heat-affected zone, no surface deformation, low cost, and no consumables
02. Strong welds with no surface protrusions, no polishing required, saving time and effort, aesthetically pleasing, and efficient
03. High performance, with a maximum penetration depth of 3mm for welding stainless steel and 2mm for welding galvanized sheet metal
Configuration Parameters
Components: Chassis + integrated water-cooled handheld chassis (draggable) + integrated desktop platform (with CCD)
